ISUZU 700P Flatbed Wrecker Trucks 190hp 4x2 5 Ton Electric Power
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5111TQZD1 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 35600- USD 37800/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | Heavy Duty | Towing Capacity | 10000 Kg |
|---|---|---|---|
| Color | White | Brakes | Air Brakes |
| Engine | Diesel | Fuel Tank Capacity | 50 Gal |
| Gross Vehicle Weight Rating | 11000kg | Horsepower | 190 Hp |
| Model | ISUZU Tow Truck | Payload Capacity | 6000kg |
| Steering | Power Steering | Transmission | 6-speed |
| High Light | ISUZU 700P Flatbed Wrecker Trucks,Flatbed Wrecker Trucks 190hp |
||
Product Description

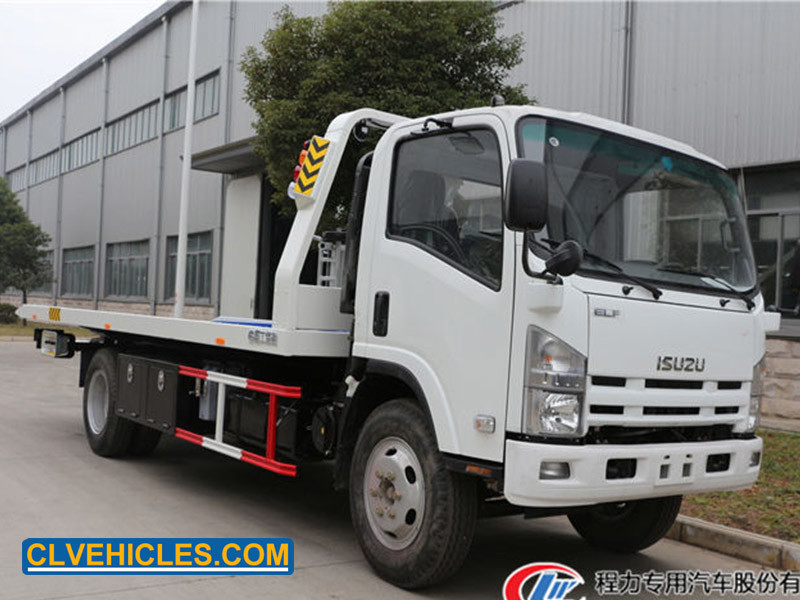

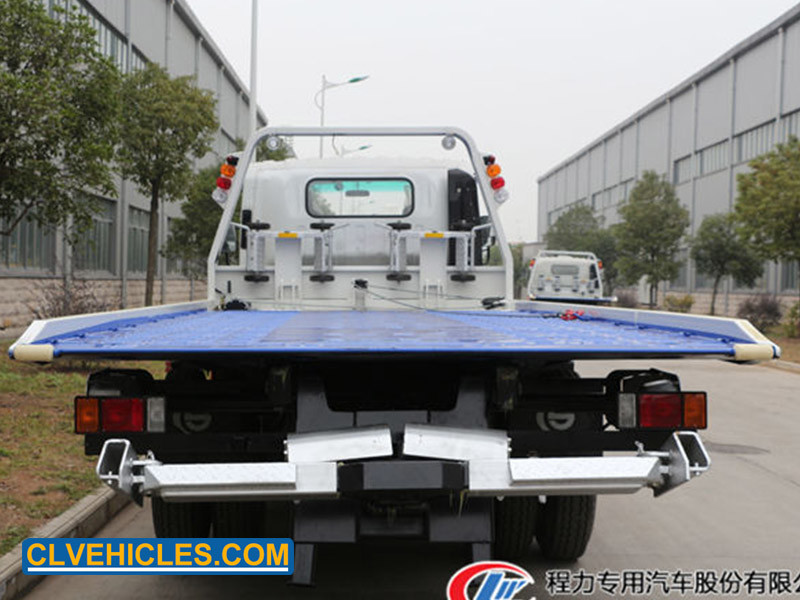

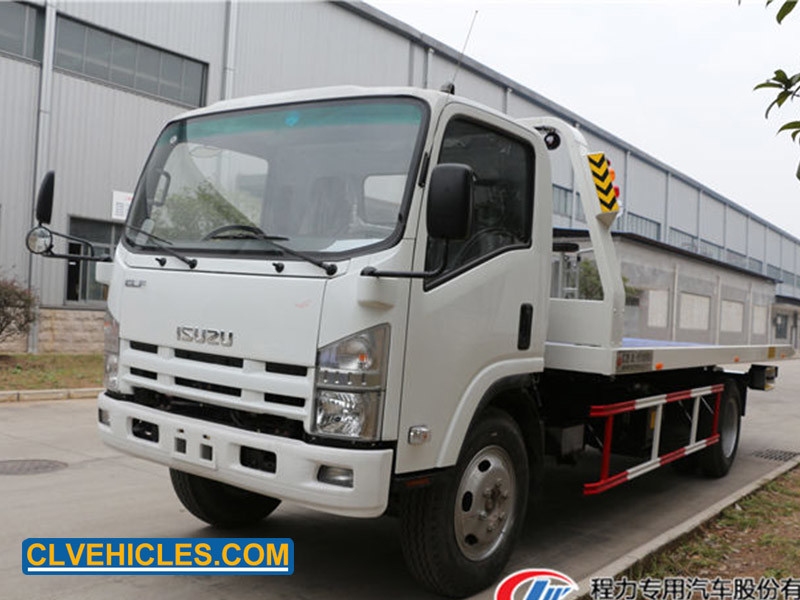

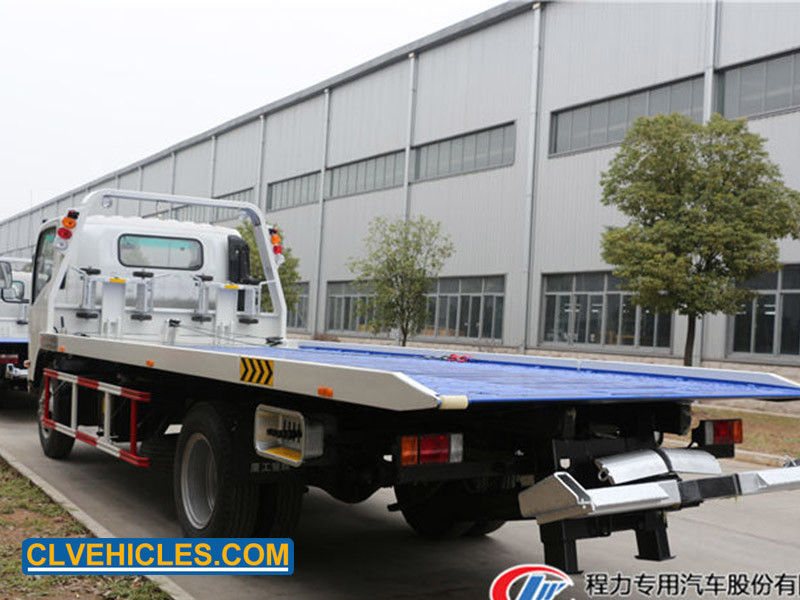

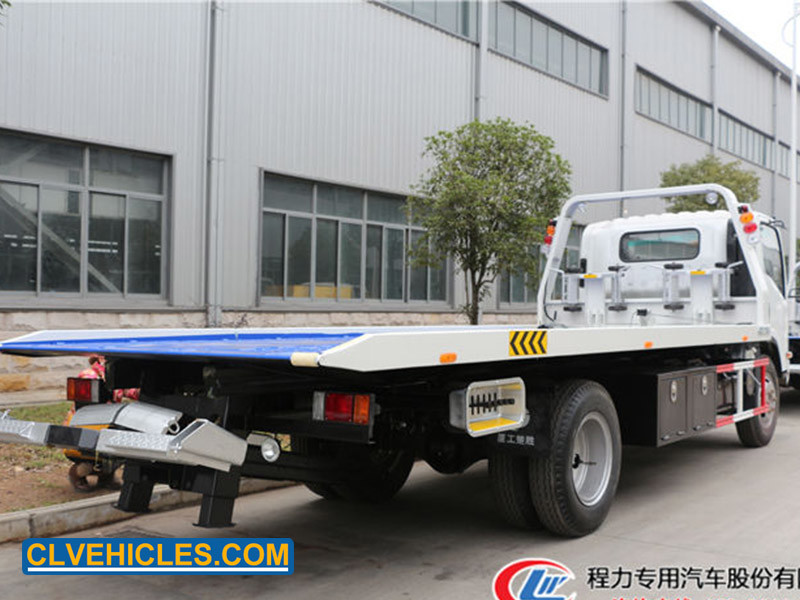

ISUZU 700P 190hp 4x2 5ton Flatbed Wrecker Tow Truck
Overview:
The Wrecker Tow Truck is a heavy-duty roadside assistance truck, designed to provide reliable and powerful roadside assistance. It features a large size and high towing capacity, making it ideal for heavy-duty roadside assistance. Its durable construction and high capacity make it strong enough to handle heavy-duty towing jobs. With an electric power source, it is capable of providing reliable power for long-distance towing and recovery services. With its heavy-duty capabilities, the Wrecker Tow Truck is an ideal recovery vehicle for any roadside assistance job.
Features:
1. With strong lifting arm and rear tow arm, it can easily towvehicles weight 4~8 tons;
2. 4-6 tons winch with 25m steel rope can help the vehicle moving to the rear of vehicle that the engine ofvehicle is broken Import hydraulic system, more reliable and stable;
3. Control levers on boths side of wrecker truck, you cancontrol it freely;
4. With one set of assist wheelers. When the wheel of cars broken, the assist wheelers can help the cars moving.
Technical Parameters:
| Chassis Specification | ||
| Chassis model | ISUZU 700P | |
| Cab | Forward control cabin with A/C | |
| Driving Type | 4*2 Left hand drive | |
| Max Speed (km/h) | 100 | |
| Overall dimension (mm) | 8500×2400×2450 | |
| Mass in working order (kg) | 5670 | |
| GVW (kg) | 11000 | |
| Wheelbase (mm) | 4475 | |
| Tire | 235/75R17.5 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | MLD 6-speed | |
| Bridge | Front axle | 4T |
| Rear axle | 7T | |
| Engine | Model | 4HK1-TC51 |
| Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke, direct injection, turbocharged | |
| Exhaust (ml) | 5193 | |
| Max output power/rotate speed(hp/rpm) | 190/2600 | |
| Max torque/rotate speed (N.m/rpm) | 510/1600 | |
| Braking system | Service Brake | Air brake |
| Park Brake | Spring energy | |
| Electric system | 24v | |
| Superstructure specification | ||
| Hoisting Organ | ||
| Max. under-pulling capacity (kg) | 11000 | |
| Max. under-hoisting capacity (kg) | 2450 | |
| Fully extended hoisting capacity (kg) | 1800 | |
| Max effective length of boom (mm) | 1700 | |
| Extension traveling of boom (mm) | 1340 | |
| Up slope angles (°) | 8 | |
| Down slope angles (°) | -8.5 | |
| Platform | ||
| Length(mm) | 6300 | |
| Width(mm) | 2300 | |
| Min. inclination angle (°) | 8 | |
| Max. Loading capacity(kg) | 5000 | |
| Winch | ||
| Quantity | 1 | |
| Rated traction Force of each winch (kN) | 40 | |
| Diameter of wire rope (mm) | 11 | |
| Length of wire rope (m) | 25 | |
| Min Wire Feed Speed (m/min) | 3.23 | |
| Power take off | ||
| Type | PTO drive from transmission | |
| Wrecker Operation | ||
| Description | Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. | |
| Hydraulic System | ||
| Description | Suitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. | |
| Safety Device | ||
| Auto brake for winch | Automatic safe brake in case winch / Engine fail. | |
| Hydraulic valves | Necessary hydraulic pressure relief & lock valve | |
Applications:
A Wrecker Tow Truck is a large and heavy-duty recovery vehicle with a high towing capacity and advanced safety features such as airbags and seatbelts. It is the perfect choice for those looking for a reliable and powerful wheel-lift tow truck or medium-duty tow truck. This truck is designed to meet the needs of commercial and industrial customers. It can easily tow large loads, even in difficult terrain or conditions. With its powerful towing power, it can quickly recover and move heavy vehicles and equipment. This makes it a great choice for any roadside assistance company or emergency service. It is also a great choice for those who are involved in construction or other large-scale projects.
Customization:
Wrecker Tow Truck
Support and Services:
Wrecker Tow Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
1. Q: What is a Wrecker Tow Truck?
A: A Wrecker Tow Truck is a heavy-duty vehicle used for towing or transporting goods from one place to another.
2. Q: What are the features of a Wrecker Tow Truck?
A: A Wrecker Tow Truck typically features a powerful engine, a large towing capacity, and a reinforced chassis for carrying heavy loads.
3. Q: What types of vehicles can be towed by a Wrecker Tow Truck?
A: A Wrecker Tow Truck can tow most types of vehicles, including cars, trucks, vans, and SUVs.
4. Q: How much can a Wrecker Tow Truck tow?
A: The towing capacity of a Wrecker Tow Truck depends on its size and engine power. Generally, they can tow up to 10 tons.
5. Q: Can a Wrecker Tow Truck be used for emergency situations?
A: Yes, a Wrecker Tow Truck can be used for emergency situations such as accident recovery and rescuing vehicles that have become stranded on the side of the road.
