600P 130hp ISUZU Fire Fighting Emergency Rescue Truck Diesel Engine
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5072GSXF1 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 76200- USD 83200 / UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine Power | 98hp | Max Speed | 80km/h |
|---|---|---|---|
| Warranty | 1 Year | Engine Type | Diesel |
| Accessories | Ladder, Tool Box, Etc. | Drivetrain | 4x2 |
| Engine | ISUZU 4KH1 | Lighting | LED |
| Model | ISUZU Fire Fighting Truck | Pump | ISUZU Fire Pump |
| Size | Medium | Transmission | 5-Speed |
| High Light | 600P 130hp ISUZU Fire Fighting Truck,ISUZU Fire Fighting Truck CGC,firefighter tanker truck ISO9001 2015 |
||
Product Description

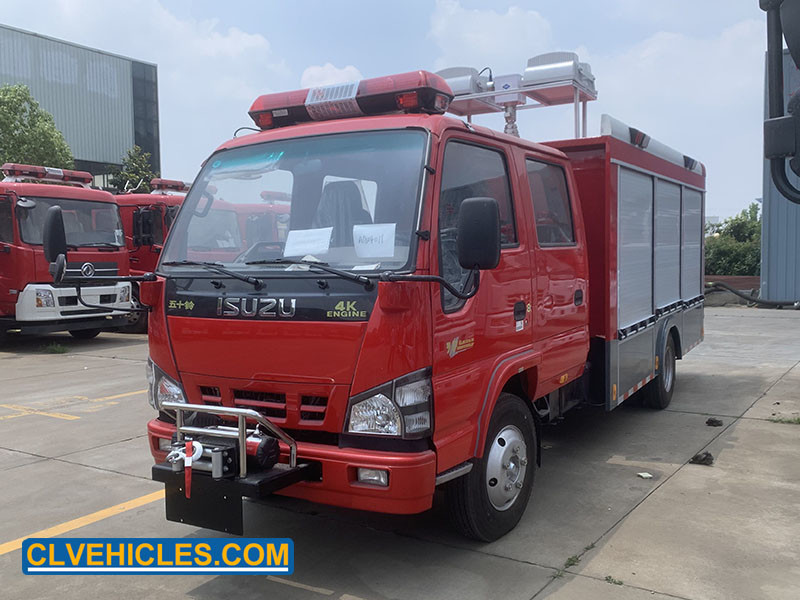

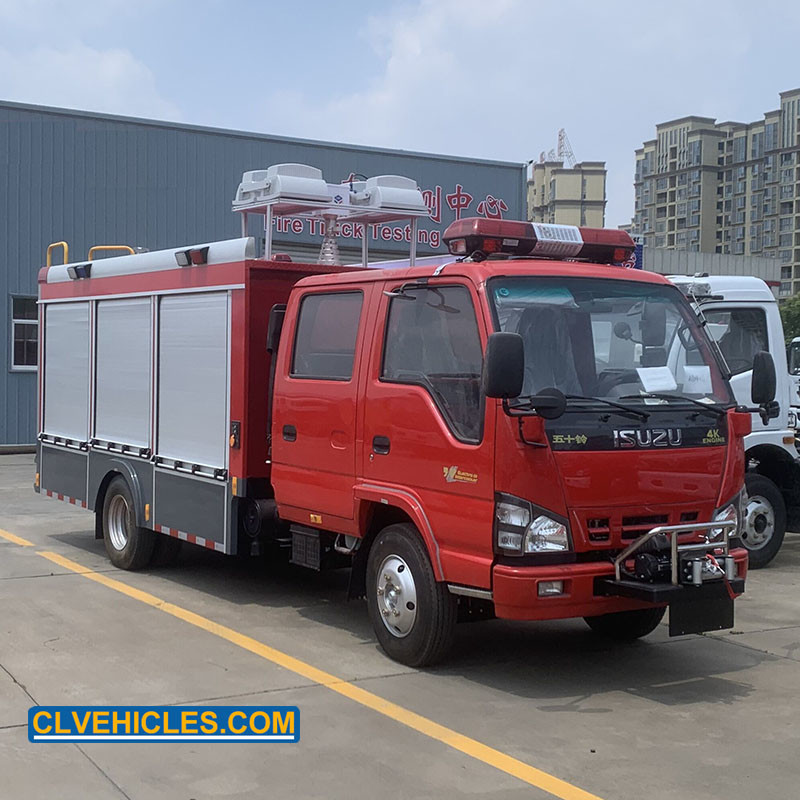

ISUZU 600P 130hp Fire Fighting Truck with Emergency Rescue Equipment
Overview:
The vehicle is equipped with all kinds of fire-fighting and rescue equipment, fireman's special protective equipment, fire-fighting and dismantling tools and fire source detector. It is a special fire truck that undertakes rescue tasks.

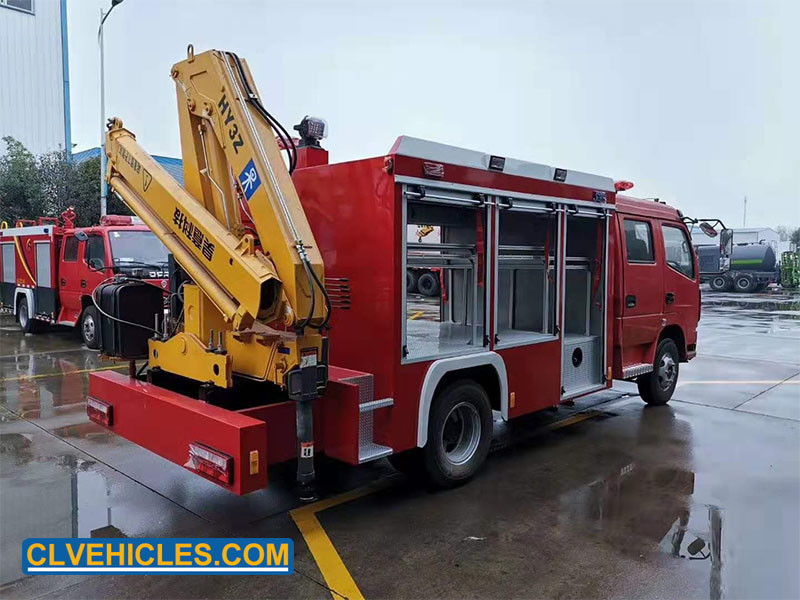

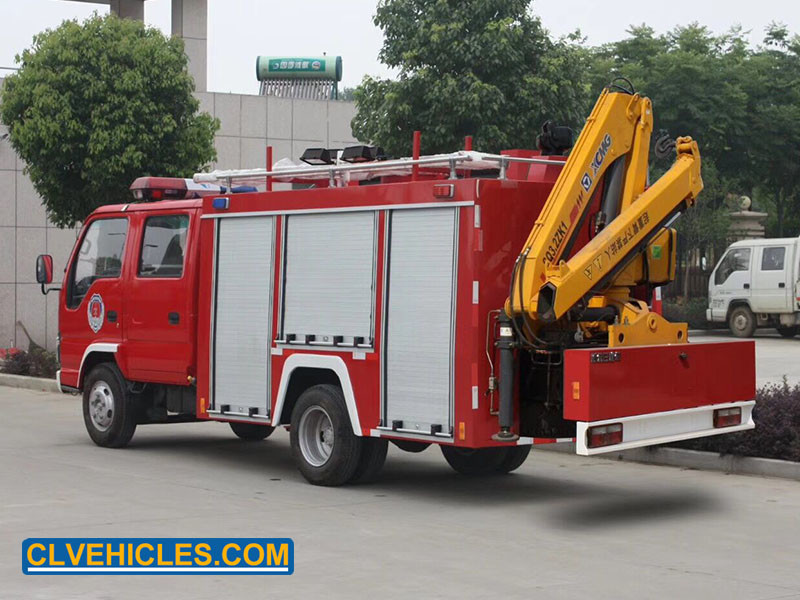

The structural composition of rescue vehicles includes the chassis, upper body (with rescue equipment), power extractor and transmission device, generator (shaft belt type or independent generator set), winch (hydraulic or electric), truck crane (generally folding arm type, in the rear of the body), lifting lighting system, electrical system.
The multifunctional rescue truck has lifting, self-rescue/traction, obstacle clearance, power generation, lighting and other functions, can be equipped with a large number of demolition, detection and inspection, plugging, protection and other types of fire equipment or tools;The interior of the vehicle equipment box adopts aluminum alloy profile adjustable modular structure, reasonable space layout, safe and convenient tool placement, belongs to the special service fire truck, widely used in fire fighting forces, to cope with various natural disasters, emergencies and rescue, rescue and other fields.
Features:
1.ISUZU chassis and engine , perfect and reliable performance.
2.Equipped with multiple fire hose coupling and all kinds of fire fighting equipment in tool cabinet.
3.Independent fire pump room , ensure the smooth progress of the work.
4.Intelligent control integration system ,mange the working state of appearance directly
5.It is with ISUZU chassis ,perfect performance!
Technical Parameters:
| Chassis Specification | |||
| Model | ISUZU 600P | ||
| Cab | Crew cab with A/C | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 90 | ||
| Overall Dimension (mm) | 7060×2300×2900 | ||
| GVW (kg) | 7300 | ||
| Curb Weight (kg) | 5700 | ||
| Wheelbase (mm) | 3815 | ||
| F/R track base (mm) | 1504/1425 | ||
| F/R overhang (mm) | 1015/1900 | ||
| Approach/Departure Angel | 23/14 | ||
| Tire | 7.00R16 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | MSB 5-speed | ||
| Bridge | Front axle | 2.5T | |
| Rear axle | 4.8T | ||
| Engine | Model | 4KH1 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust (ml) | 2999 | ||
| Max output power(hp) | 130 | ||
| Braking system | Service Brake | Oil brake | |
| Park Brake | Spring energy | ||
| Electric system | 24v | ||
| Superstructure Specification | |||
| Crane | Brand | XCMG | |
| Model | SQZ68-3 | ||
| Max. Lifting Capacity (kg) | 3200 | ||
| Max. Lifting Height (m) | 10 | ||
| Max. Working Radius (m) | 7.3 | ||
| Rotation Angle | 400° | ||
| Winch | Rated line pull | 12000LBS(5400kgs) | |
| Quantity | 2 PCS (Front and rear) | ||
| Motor | 4.2kw/12V | ||
| Speed (No-load) | 10m/s | ||
| Generator | Rated power | 12KVA | |
| Voltage | 220/380V | ||
| Frequency | 50HZ | ||
| Illuminating system | Power | 4*1000W | |
| Max. lifting height | 6m | ||
| Horizontal rotary | 420° | ||
| Vertical rotary | 420° | ||
| Additional Electrical system | Warning light, warning sirens | ||
| Fire lights, equipment box lights | |||
| Equipment box | Equipment box: at the back of carriage, there are two-layer clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed. |
||
| Rolling shutter door | Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. | ||
| Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. | ||
Applications:
ISUZU Fighting Truck is an ideal fire rescue vehicle, fire control vehicle, and fire emergency vehicle, manufactured by Chengli, a renowned brand in HuBei province, China. This fire fighting truck is made of high-quality steel, with a total weight of 7000kg and a large size. It is equipped with a 3000L water tank to provide efficient fire extinguishing capability. The truck is powered by a diesel engine, providing reliable power for emergency situations. This fire fighting truck is ideal for fire rescues, fire control, and fire emergency situations.
Customization:
Custom Fire Fighting Truck Service
We provide custom-made fire fighting truck services, specifically for the needs of your project. Our fire fighting truck is designed to carry up to 20,000 liters and with a wheelbase of 2,400-5,500 mm in 4x2, or 6x4, 8x4 type chassis. You can select from either a single or double cab and also choose from a range of optional equipment such as high-pressure fire pump, and fire monitor.
Whether you need a water tank type vehicle, foam fire truck, dry powder fire truck or water tank truck for fire fighting, our custom-made fire truck is the perfect solution.
Support and Services:
Sewage Vacuum Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
Q1: What is the Brand Name of Fire Fighting Truck?
A1: The Brand Name of Fire Fighting Truck is Chengli, which is from HuBei China.
Q2: What is the function of Fire Fighting Truck?
A2: Fire Fighting Truck is used for fire fighting and rescue, which provides a quick response to different occasions.
Q3: What is the capacity of Fire Fighting Truck?
A3: The capacity of Fire Fighting Truck is ranging from 3,000 liters to 20,000 liters.
Q4: Is it possible to customize the Fire Fighting Truck?
A4: Yes, it is possible to customize the Fire Fighting Truck according to customer’s requirements.
Q5: What is the warranty period of Fire Fighting Truck?
A5: The warranty period of Fire Fighting Truck is one year.
