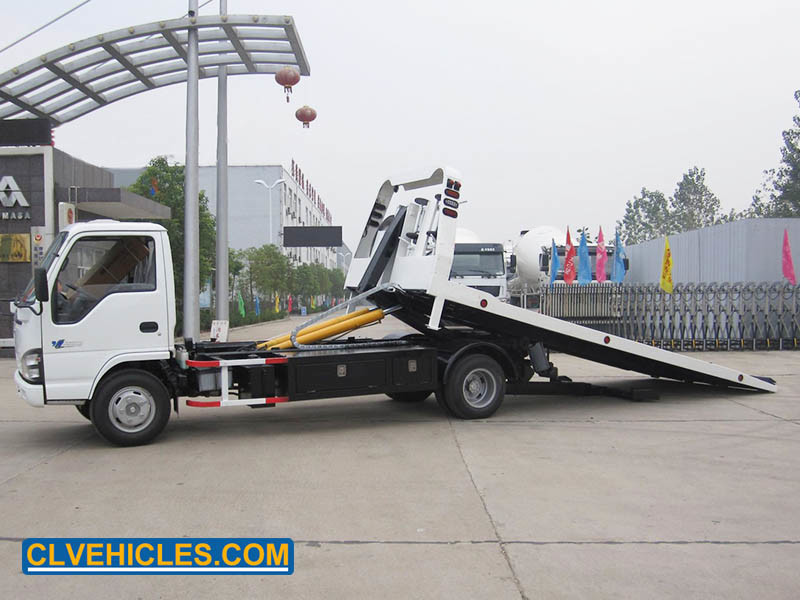

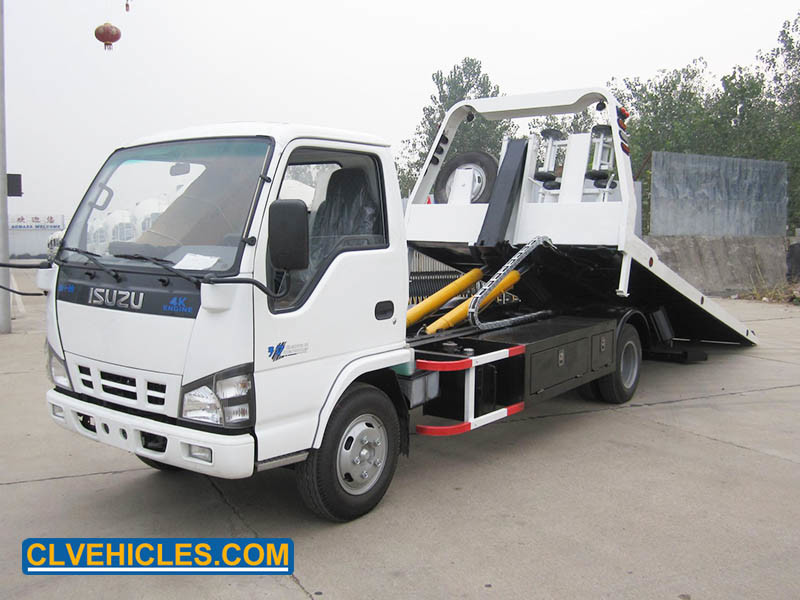

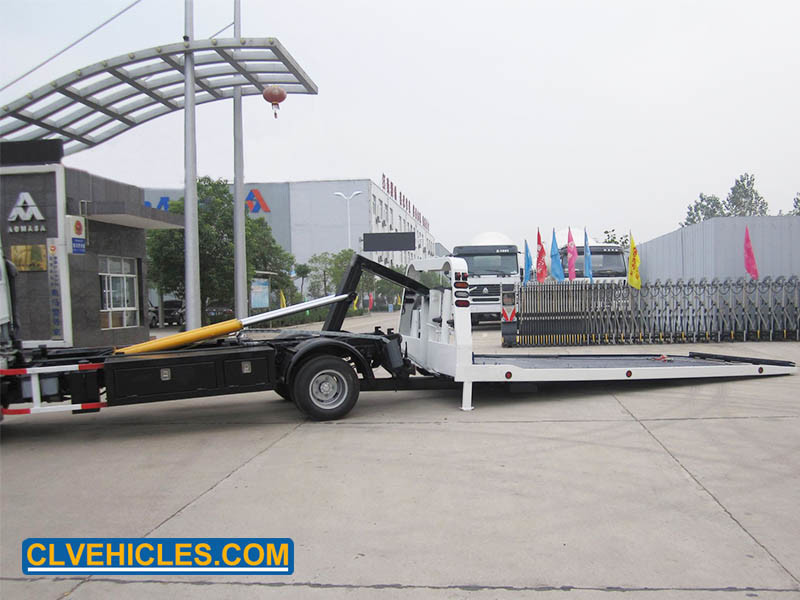

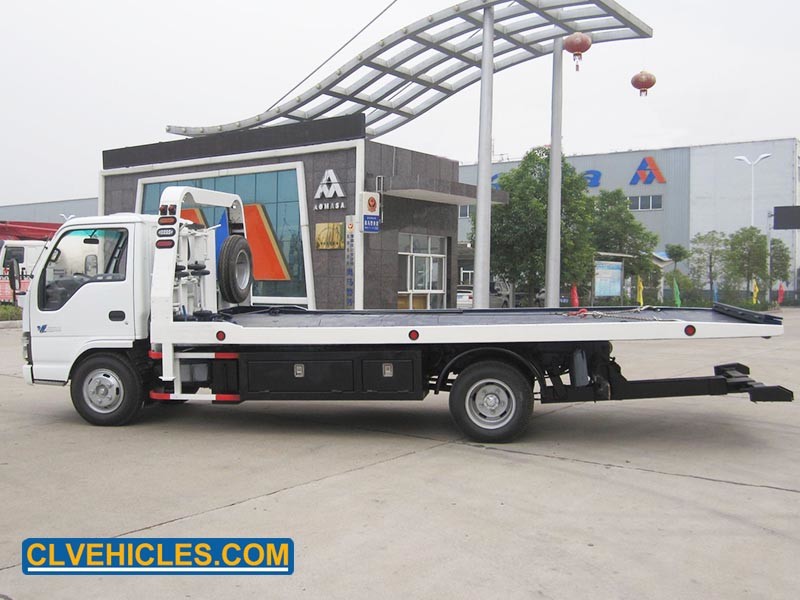

600P 130hp International Flatbed Tow Truck Isuzu Rollback Truck Diesel
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5071TQZD2 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 29200- USD 33200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Body Type | Flatbed | Cab Type | Single Cab |
|---|---|---|---|
| Capacity | 5-7 Tons | Color | White |
| Engine | 4KH1 | Durability | High |
| Gross Vehicle Weight | 7,300kg | Fuel Type | Diesel |
| Model | ISUZU Tow Truck | Steering | Power Steering |
| Tire Size | 7.50R16 | Transmission | 5-speed Manual |
| High Light | 130hp International Flatbed Tow Truck,600P International Flatbed Tow Truck,Isuzu Rollback Truck Diesel |
||
Product Description
ISUZU 600P 130hp Full load Wrecker Rollback Tow Truck High Capacity Heavy
Overview:
The Wrecker Tow Truck is a heavy duty, large-scale auto breakdown truck. Powered by a diesel engine, it is designed to tow large vehicles with ease. It features a wheel-lift tow truck that is capable of towing any size of vehicle with ease. The Wrecker Tow Truck is also designed with a special auto-breakdown feature, allowing it to be used in the event of a breakdown. It has a distinctive white color that stands out in a crowd, and comes with a one year warranty for added peace of mind.
Features:
1. With strong lifting arm and rear tow arm, it can easily towvehicles weight 4~8 tons;
2. 4-6 tons winch with 25m steel rope can help the vehicle moving to the rear of vehicle that the engine ofvehicle is broken Import hydraulic system, more reliable and stable;
3. Control levers on boths side of wrecker truck, you cancontrol it freely;
4. With one set of assist wheelers. When the wheel of cars broken, the assist wheelers can help the cars moving.
Technical Parameters:
| Truck Specification | ||
| Cab | ISUZU 600P single row cabin | |
| Driving Type | 4*2 | |
| Overall dimension(mm) | 7305*2380*2250 | |
| Mass in working order(kg) | 4800 | |
| GVW(kg) | 7300 | |
| Wheelbase(mm) | 3815 | |
| Tire | 7.00-16 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | MSB 5-speed gear box | |
| Bridge | Front axle | 2.5T |
| Rear axle | 4.8T | |
| Enging | Model | 4KH1-TCG40 |
| Horse power | 120HP | |
| Displacement | 2999L | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Hydraulic Under Lift at Rear | ||
| Max Lifting weight(kg) | 3000 | |
| Max. Rated towing weight(kg) | 5000 | |
| Max effective length of boom (mm) | 1700 | |
| Extension traveling of boom (mm) | 1340 | |
| Hydraulic winches & steel cables | ||
| Type: | Planetary type | |
| Quantity (set) | 1 | |
| Max. Pulling power of winch (kgs) | 4000 | |
| Length of steel cable(m) | 21 | |
| Speed of winch (m/min) | 3.23 | |
| Diameter of winch(cm) | 11 | |
| Back load platform | ||
| External dimension of platform (length×width)(mm) | 5600*2350 | |
| Max. Loading of platform(kgs) | 4000 | |
| Min. Elevation of full extending platform ° | 10 | |
| Extension traveling of platform | 3000 | |
| Power take off | ||
| Type | PTO drive from transmission | |
| Wrecker Operation | ||
| Description | Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. | |
| Hydraulic System | ||
| Description | uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. | |
| Safety Device | ||
| Auto brake for winch | Automatic safe brake in case winch / Engine fail. | |
| Hydraulic valves | Necessary hydraulic pressure relief & lock valve/ valves | |
Applications:
A Wrecker Tow Truck is a large and heavy-duty recovery vehicle with a high towing capacity and advanced safety features such as airbags and seatbelts. It is the perfect choice for those looking for a reliable and powerful wheel-lift tow truck or medium-duty tow truck. This truck is designed to meet the needs of commercial and industrial customers. It can easily tow large loads, even in difficult terrain or conditions. With its powerful towing power, it can quickly recover and move heavy vehicles and equipment. This makes it a great choice for any roadside assistance company or emergency service. It is also a great choice for those who are involved in construction or other large-scale projects.
Customization:
Wrecker Tow Truck
Support and Services:
Wrecker Tow Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
- Q: What is a Wrecker Tow Truck?
A: A Wrecker Tow Truck is a heavy duty vehicle designed to tow or transport vehicles that are disabled or unable to move under their own power. - Q: What features does a Wrecker Tow Truck have?
A: A Wrecker Tow Truck typically has features such as a winch, boom, and wheel lift, all designed to safely and securely move vehicles of various sizes. - Q: What types of vehicles can be towed by a Wrecker Tow Truck?
A: A Wrecker Tow Truck can tow a variety of vehicles such as cars, vans, trucks, buses, and even semi-trucks. - Q: How durable are Wrecker Tow Trucks?
A: Wrecker Tow Trucks are designed to be tough and durable, and are built to withstand the rigors of the towing and transport industry. - Q: What safety features are available on Wrecker Tow Trucks?
A: Wrecker Tow Trucks typically come equipped with safety features such as anti-lock brakes, traction control, and airbag systems. Additionally, many Wrecker Tow Trucks are equipped with cameras and sensors to help ensure the safe and secure transport of vehicles.
