Winch 600P ISUZU Tow Truck All Terrain 130hp 4 ton Flatbed Tow Trucks

Place of Origin China
Brand Name ISUZU
Certification CGC,ISO9001:2015,TUV SUD,PV,CNAS,
Model Number CL5071TQZD1
Minimum Order Quantity 1 UNIT
Price USD 26200- USD 29200/ UNIT
Delivery Time 45-60 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Towing Capacity 5000kg Gross Vehicle Weight 7,300kg
Model ISUZU Tow Truck Payload 3,500kg
Power 130PS Tire Size 7.50R16
Brakes ABS Transmission 5-speed Manual
Wheelbase 3,815mm
High Light

Winch ISUZU Tow Truck

,

ISUZU Tow Truck All Terrain

,

4 Ton Flatbed Tow Trucks

Leave a Message
Product Description

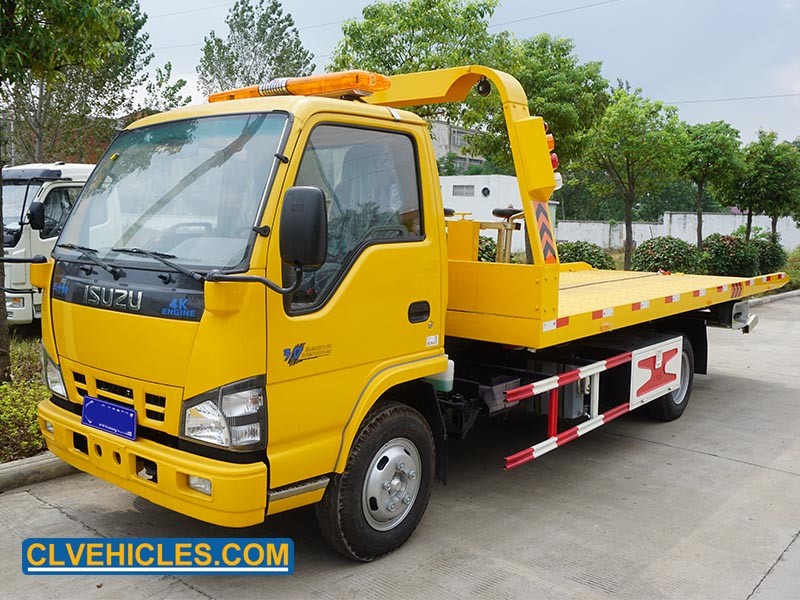

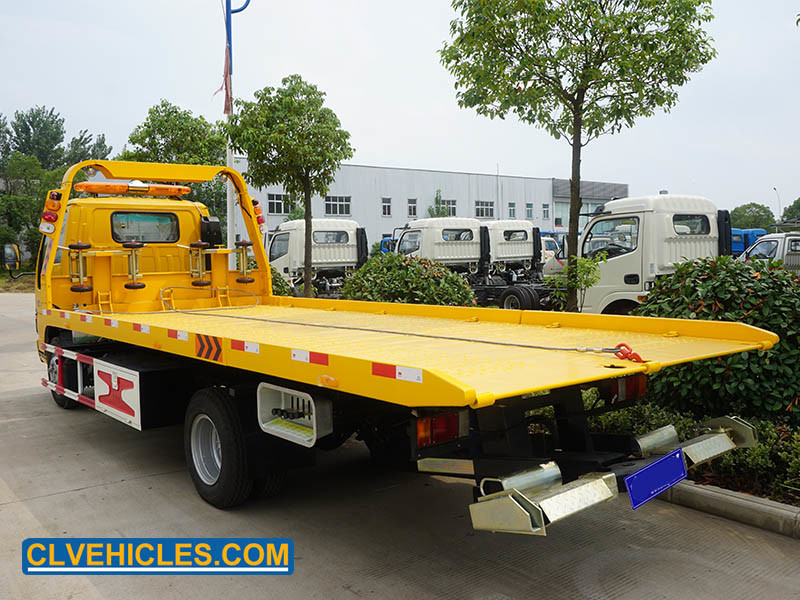

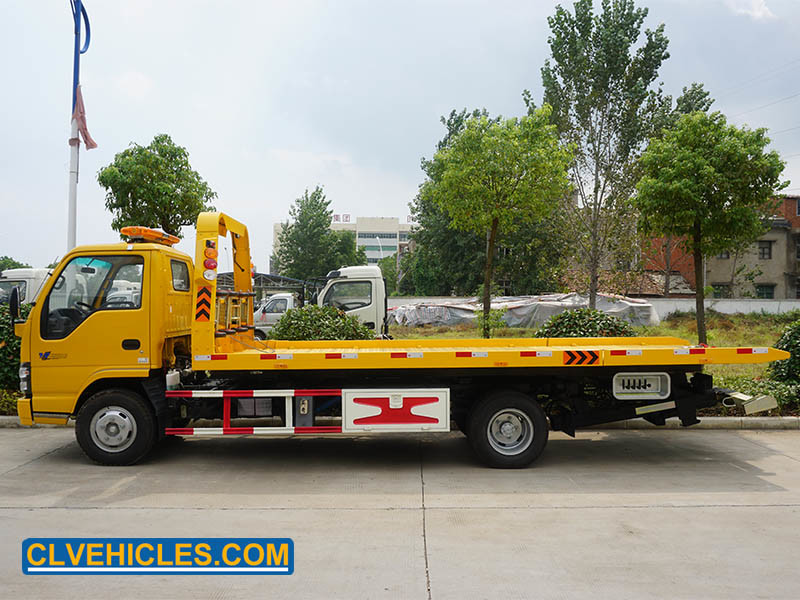

ISUZU 600P 130hp 4ton Winch Flatbed Type Wrecker Tow Truck

Overview:

The Wrecker Tow Truck is a heavy-duty recovery vehicle with a powerful electric power source that provides a large size and high durability. This tow truck is designed for flatbed towing and offers a variety of safety features, including airbags and seatbelts. It is perfect for towing large vehicles, such as recreational vehicles, commercial vehicles, and even military vehicles. The Wrecker Tow Truck is designed for maximum reliability and safety, making it a great choice for any towing job.

Winch 600P ISUZU Tow Truck All Terrain 130hp 4 ton Flatbed Tow Trucks 0Winch 600P ISUZU Tow Truck All Terrain 130hp 4 ton Flatbed Tow Trucks 1Winch 600P ISUZU Tow Truck All Terrain 130hp 4 ton Flatbed Tow Trucks 2

Features:

1. With strong lifting arm and rear tow arm, it can easily towvehicles weight 4~8 tons;

2. 4-6 tons winch with 25m steel rope can help the vehicle moving to the rear of vehicle that the engine ofvehicle is broken Import hydraulic system, more reliable and stable;
3. Control levers on boths side of wrecker truck, you cancontrol it freely;
4. With one set of assist wheelers. When the wheel of cars broken, the assist wheelers can help the cars moving.

Winch 600P ISUZU Tow Truck All Terrain 130hp 4 ton Flatbed Tow Trucks 3

Technical Parameters:


Truck Specification
Cab ISUZU 600P single row cabin
Driving Type 4*2
Overall dimension(mm) 7305*2380*2250
Mass in working order(kg) 4800
GVW(kg) 7300
Wheelbase(mm) 3815
Tire 7.00-16
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box MSB 5-speed gear box
Bridge Front axle 2.5T
Rear axle 4.8T
Enging Model 4KH1-TCG40
Horse power 120HP
Displacement 2999L
Braking system Service Brake Compressed air brake
Park Brake Spring energy
Eletric system 24v
Upper-Body specification
Hydraulic Under Lift at Rear
Max Lifting weight(kg) 3000
Max. Rated towing weight(kg) 5000
Max effective length of boom (mm) 1700
Extension traveling of boom (mm) 1340
Hydraulic winches & steel cables
Type: Planetary type
Quantity (set) 1
Max. Pulling power of winch (kgs) 4000
Length of steel cable(m) 21
Speed of winch (m/min) 3.23
Diameter of winch(cm) 11
Back load platform
External dimension of platform (length×width)(mm) 5600*2350
Max. Loading of platform(kgs) 4000
Min. Elevation of full extending platform ° 10
Extension traveling of platform 3000
Power take off
Type PTO drive from transmission
Wrecker Operation
Description Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin.
Hydraulic System
Description uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc.
Safety Device
Auto brake for winch Automatic safe brake in case winch / Engine fail.
Hydraulic valves Necessary hydraulic pressure relief & lock valve/ valves

Applications:

A Wrecker Tow Truck is a large and heavy-duty recovery vehicle with a high towing capacity and advanced safety features such as airbags and seatbelts. It is the perfect choice for those looking for a reliable and powerful wheel-lift tow truck or medium-duty tow truck. This truck is designed to meet the needs of commercial and industrial customers. It can easily tow large loads, even in difficult terrain or conditions. With its powerful towing power, it can quickly recover and move heavy vehicles and equipment. This makes it a great choice for any roadside assistance company or emergency service. It is also a great choice for those who are involved in construction or other large-scale projects.

 Winch 600P ISUZU Tow Truck All Terrain 130hp 4 ton Flatbed Tow Trucks 4

Customization:

Wrecker Tow Truck
 All kinds of wrecker trucks are available include flatbed wrecker, Integrated wrecker and Rotator wrecker from light duty to heavy duty. Also we can design customized wrecker superstructure parts according drawings.Winch 600P ISUZU Tow Truck All Terrain 130hp 4 ton Flatbed Tow Trucks 5

Support and Services:

Wrecker Tow Truck Technical Support and Service

1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.

2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.

3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.

4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.



Packing and Shipping:

For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.

Winch 600P ISUZU Tow Truck All Terrain 130hp 4 ton Flatbed Tow Trucks 6



FAQ:

1. Q: What is a Wrecker Tow Truck?

    A: A Wrecker Tow Truck is a heavy-duty vehicle used for towing or transporting goods from one place to another.



2Q: What are the features of a Wrecker Tow Truck?

    A: A Wrecker Tow Truck typically features a powerful engine, a large towing capacity, and a reinforced chassis for carrying heavy loads.



3. Q: What types of vehicles can be towed by a Wrecker Tow Truck?

    A: A Wrecker Tow Truck can tow most types of vehicles, including cars, trucks, vans, and SUVs.



4. Q: How much can a Wrecker Tow Truck tow?

    A: The towing capacity of a Wrecker Tow Truck depends on its size and engine power. Generally, they can tow up to 10 tons.



5. Q: Can a Wrecker Tow Truck be used for emergency situations?

    A: Yes, a Wrecker Tow Truck can be used for emergency situations such as accident recovery and rescuing vehicles that have become stranded on the side of the road.
