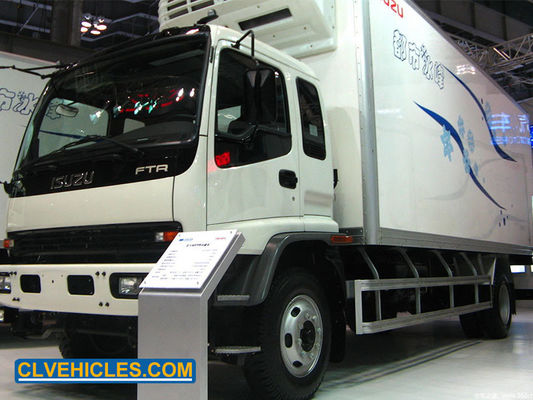

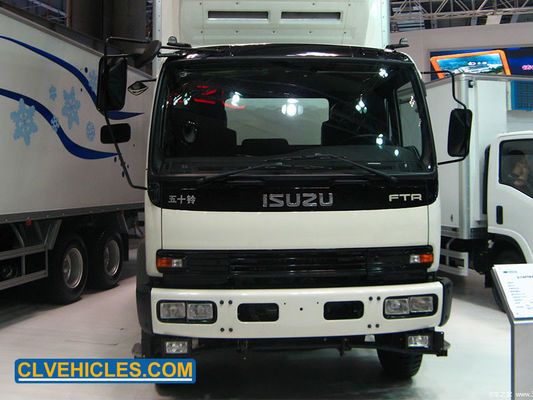

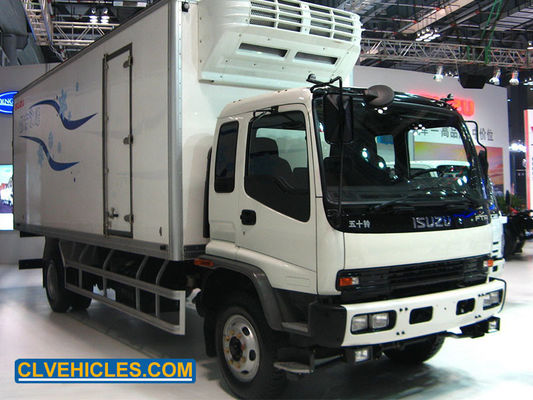

FTR 205hp ISUZU Reefer Truck 16 ton Cold Storage Van Medium Size
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5161XSLC1 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 46700- USD 48900/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Gross Vehicle Weight | 16,000 Kg | Engine | High-performance |
|---|---|---|---|
| Climate Control | Yes | Insulation | Foam |
| Body Type | Reefer Truck | Max. Output | 205 Hp |
| Refrigeration Unit | Thermo King | Temperature Range | -20°C To +20°C |
| Transmission | 6-speed Manual | ||
| High Light | 205hp ISUZU Reefer Truck,FTR ISUZU Reefer Truck,16 Ton Cold Storage Van |
||
Product Description
ISUZU FTR 205hp 16ton Cold Storage Delivery Truck
Overview:
Refrigerator Trucks are an ideal choice for those who need to transport goods at freezing temperatures. The truck is equipped with air suspension, sliding doors, LED lighting, and foam insulation, making it an ideal choice for transporting temperature-sensitive goods. It is the perfect solution for those looking for a reliable, efficient, and cost-effective way to transport goods. With its ability to keep goods at freezing temperatures, the Refrigerator Truck is an ideal choice for businesses and organizations that need to transport goods in a timely and efficient manner.
Features:
1.The “sandwich” board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.
2.Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.
3.The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane;
4.Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.
5.Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.).
Technical Parameters:
| Chassis Specification | |||
| Cab | One and row cab with power steering, electronic flameout, A/C | ||
| Driving Type | 4*2 | ||
| Max Speed (km/h) | 95 | ||
| Overall dimension (mm) | 9000×2470×3935 | ||
| GVW (kg) | ≤16000 | ||
| Mass in working order (kg) | 7055 | ||
| Wheelbase (mm) | 5000 | ||
| Tire | 10.00R20 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Gear box | 6-speed | ||
| Bridge | Front axle | 6000kg | |
| Rear axle | 10000kg | ||
| Engine | Fuel Type | Diesel | |
| Model | 4HK1-TC50 | ||
| Exhaust (ml) | 5190 | ||
| Max output power (hp) | 205hp | ||
| Braking system | Service Brake | Air brake | |
| Park Brake | Spring energy | ||
| Electric system | 24v | ||
| Superstructure Specification | |||
| Van box | |||
| Van box dimension(mm) | 6415*2250*2400 | ||
| Internal temperature of van box | Under ambient temperatures of +5˚C to +50˚C maintaining the internal temperature of the refrigerated body within -5°C to -15°C | ||
| Material of van box | Glass fiber reinforced plastics | ||
| Keep warm material | 8mm polyurethane foam | ||
| Thickness of van box | 80mm for side and top ,90mm for bottom | ||
| Structure of van box | All walls and roof panels (internal and external), sub-frames, main-frames and chassis are anti-corrosive treated | ||
| The external surface of the body is of a highly reflective finish (e.g. white) and more heat-reflective finish | |||
| Heavy duty non slips gritted floor | |||
| Fiberglass body with anodized aluminum profile sheathing | |||
| The body has drains for release of water | |||
| Thermal insulation foaming and refrigerant gas to comply with the requirements of the most recent Montreal Protocol. | |||
| Body structure is rigid and capable of withstanding vibrations and shocks from rough roads while keeping the load fully secured when the vehicle is fully loaded. | |||
| Door open | Body with two insulated doors at the rear for full width opening with at least two hinges per door. Hinges and closing mechanism is of a robust design. | ||
| Refrigeration unit | |||
| Brand & Model | Thermo King SV800 | ||
| Temperature setting range | -30℃- +30℃ | ||
| Min. Temperature in van box | -18℃ | ||
| Compressor Model | TK21 | ||
| Number of cylinders | 10 | ||
| Displacement (cm3) | 214.7 | ||
| ATP. Cooling capacity in 30℃ambient temp (w) | 7000 (0℃), 3700(-20℃) | ||
| Air Volume (m3/h) | 3000 | ||
| Air speed(m/s) | 3.5 | ||
| Refrigerant type | R404A | ||
| Filling quantity | 2.6Kg | ||
Applications:
A Refrigerator Truck is a temperature controlled vehicle designed for transporting chilled and frozen goods. It is equipped with advanced brakes, such as ABS, and a high-performance engine, typically fueled by diesel. It also features an insulated body made of foam, allowing it to maintain freezing temperatures during delivery. This makes it an ideal choice for transporting refrigerated goods, such as food and pharmaceutical products, over long distances. With its reliable and efficient performance, the Refrigerator Truck is an excellent choice for businesses that need to deliver goods that require temperature control.
Customization:
Customized Freezing Temperature Delivery Truck
Our Freezing Temperature Delivery Truck is the perfect solution for your needs. With a heavy duty diesel engine, sliding doors and a powerful refrigeration system, this truck is able to reach temperatures as low as -20°C. It is also designed to handle heavy loads, making it ideal for transportation of frozen goods.
We provide custom-made refrigerator truck services, specifically for the needs of your project. Our refrigerator truck is designed to carry up 3ton to 50ton and with a wheelbase of 2,400-5,500 mm in 4x2, or 6x4, 8x4 type chassis and semi-trailer.
Support and Services:
Refrigerator Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
Q1: What is a Refrigerator Truck?
A1:A Refrigerator Truck is a specialized vehicle used to transport temperature-sensitive goods. It is designed with cooling or heating technology to maintain the desired temperature of the goods during transport.
Q2: What are the benefits of a Refrigerator Truck?
A2:Refrigerator Trucks offer several benefits including: they can maintain a consistent temperature for the goods, reduce spoilage and losses of goods, and provide a more efficient way to transport products such as food, medicines, and other temperature-sensitive items.
Q3: What type of goods can be transported in a Refrigerator Truck?
A3:Refrigerator Trucks can transport various types of goods such as food, medicines, flowers, and other temperature-sensitive items.
Q4: How long can a Refrigerator Truck maintain the desired temperature?
A4:A Refrigerator Truck can maintain the desired temperature for up to several days depending on the type of vehicle and the type of goods being transported.
Q5: What type of cooling system does a Refrigerator Truck use?
A5:Refrigerator Trucks typically use either a mechanical or absorption cooling system. Mechanical systems use compressors to cool the air, while absorption systems use a chemical process to cool the air.
