700P 190hp ISUZU Garbage Truck Compressed Rubbish Power Steering
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5101YSLJ1 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 36800- USD 39200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 8-10 Tons | Hoist | Hydraulic Hoist |
|---|---|---|---|
| Steering | Power Steering | Power | 190 Hp |
| Model | Garbage Truck | Axle Configuration | 4X2 |
| Brand | ISUZU | Engine | Diesel |
| Transmission | Manual | ||
| High Light | 700P ISUZU Garbage Truck,ISUZU Garbage Truck Compressed Rubbish |
||
Product Description

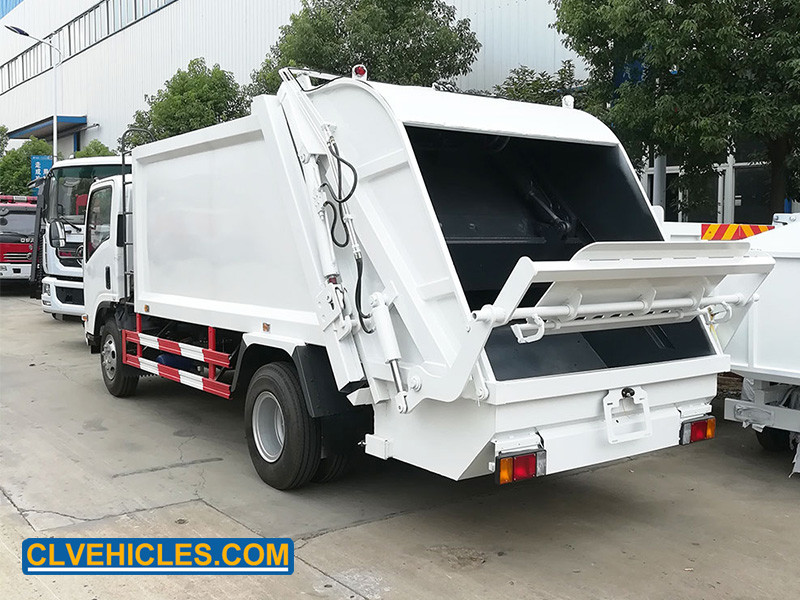

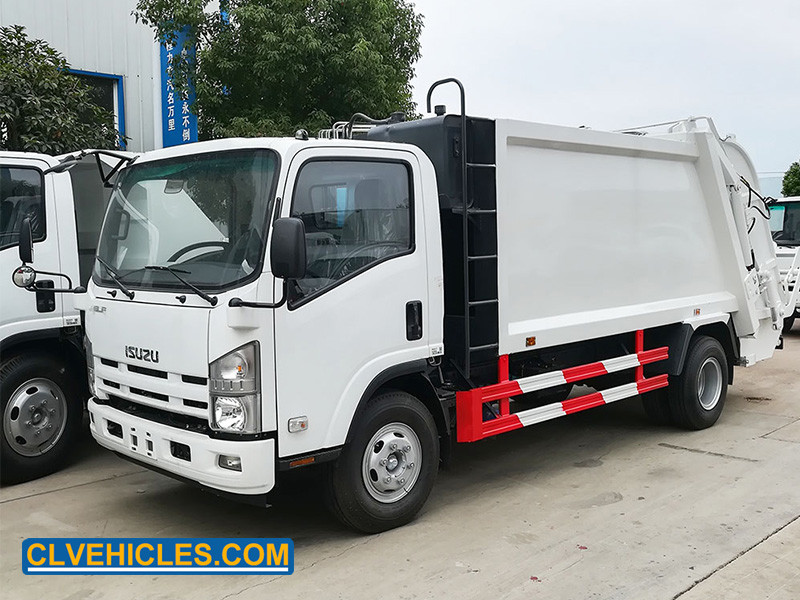

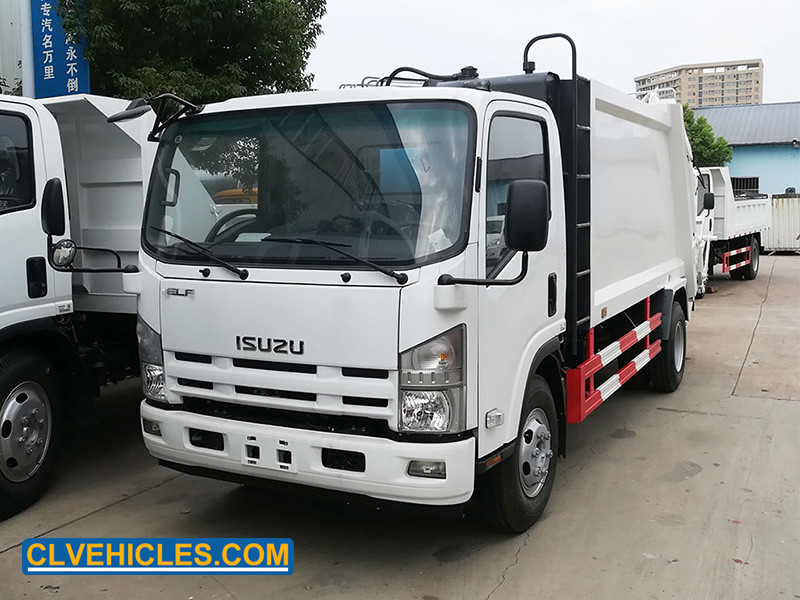

ISUZU 700P 190hp Power Steering Compressed Rubbish Vehicle
Overview:
Garbage Truck is a highly efficient, reliable and durable waste collection vehicle. It is equipped with advanced air brakes, a hydraulic compactor and lift, a powerful diesel engine, and all-terrain tires, ensuring maximum performance and efficiency for any kind of trash collection job. This trash collection truck is the ideal solution for any municipality or organization looking for a reliable trash collection vehicle. Its robust construction and advanced features make it an ideal choice for any waste collection task. With its advanced air brakes, hydraulic compactor and lift, powerful diesel engine, and all-terrain tires, this garbage truck is the perfect choice for any waste or trash collection job. Whether you need to collect garbage from residential areas, commercial areas, or even industrial sites, this trash collection truck is the perfect choice. Its robust construction and advanced features make it an ideal choice for any waste collection job, making it the perfect choice for any municipality or organization looking for a reliable waste collection vehicle.
Features:
1. Hydraulic system, including the control valve, oil cylinder, connecting pipeline and other key parts, has advanced structure, reliable performance, simple operation and convenient maintenance.

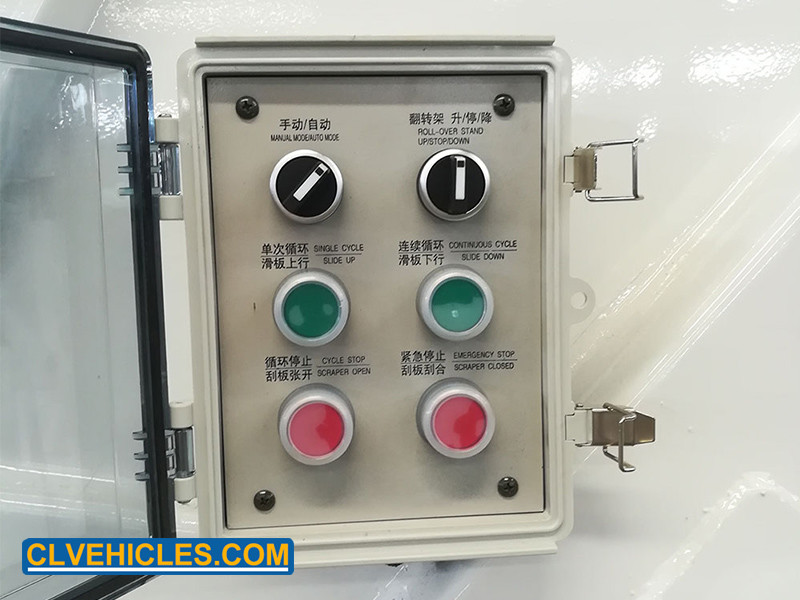

2. Advanced electric control system :
1) PLC integrated control
2) Mechatronics-hydraulic integrated control
3) High degree of automation.
3. Back pressure valve, which can highly improve the loading efficiency.
4. The beautiful streamlined appearance design, high-strength anti-corrosion steel plate
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Technical Parameters:
| Truck Specification | ||||
| Cab | Single row cab | |||
| Driving Type | 4*2 Left hand driving | |||
| Max Speed (km/h) | 115 | |||
| Overall dimension(mm) | 7865×1870×2200 | |||
| GVW( kg) | 11000 | |||
| Mass in working order( kg) | 4460 | |||
| Wheelbase(mm) | 4175 | |||
| F/R track base(mm) | 1569/1530 | |||
| F/R overhang(mm) | 1068/1997 | |||
| Approach/Departure Angel | 22/25 | |||
| Tire | 8.25R20 | |||
| Clutch | Single-plate dry diaphragm spring clutch | |||
| Steering | Hydraulic steering with power assistance | |||
| Gear box | 6-speed | |||
| Bridge | Front axle | 4T | ||
| Rear axle | 7T | |||
| Enging | Model | 4HK1 | ||
| Fuel Type | Diesel fuel | |||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | |||
| Exhaust(ml) | 5190 | |||
| Max output power/rotate speed (hp /rpm ) | 190/2600 | |||
| Braking system | Service Brake | Compressed air brake | ||
| Park Brake | Spring energy | |||
| Auxiliary brake | engine exhaust brake | |||
| Eletric system | 24v | |||
| Upper-Body specification | ||||
| Material of tank | material : Q235,Thickness :4(mm) side /4(mm) rear | |||
| dirty tank volume | 8m³ | |||
| filler volume | 500L | |||
| filing time(s) | 8~10s | |||
| filling cycle time(s) | 50~60s/once | |||
| Discharge type | Dumping | |||
| Time for dumping | 30-40S | |||
| Hydraulic pressure | 16mpa | |||
| Controlling way | Manualy and electrical control | |||
Applications:
The garbage compactor truck (garbage compacting truck) is used to collect, transport and clearing up wastes, advoiding the secondary pollution. Features of the garbage dump truck, one kind of new environmental truck, are easy, effective, and enviromental.
Garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized.
Customization:
Custom Garbage Truck Service
We provide custom-made garbage truck services, specifically for the needs of your project. Our garbage truck is designed to carry up to 24CBM and with a wheelbase of 2,400-5,500 mm in 4x2, or 6x4, 8x4 type chassis.
Whether you need a dump garbage truck, skip loader garbage truck, hook arm garbage truck or side loader garbage truck, our custom-made fire truck is the perfect solution.
Support and Services:
Garbage Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
Q1: What is a Garbage Truck?
A1: A Garbage Truck is a type of vehicle specially designed for the collection, transport, and disposal of solid waste. It is typically equipped with compartments for collecting different types of waste and a hydraulic lifting mechanism for emptying the waste into landfills and other disposal sites.
Q2: What are the features of Garbage Truck?
A2: Garbage Trucks feature a variety of features that make them suitable for the collection and disposal of solid waste. These features include a durable chassis, an enclosed cab, a hydraulic lifting mechanism, and compartments for collecting different types of waste.
Q3: How does a Garbage Truck work?
A3: Garbage Trucks are equipped with a hydraulic lifting mechanism that is used to empty the truck's waste compartments into landfills and other disposal sites. The hydraulic lifting mechanism is usually powered by an engine, and the truck is typically driven by a driver.
Q4: What is the capacity of a Garbage Truck?
A4: The capacity of a Garbage Truck varies depending on the size and type of the truck. Generally, the capacity ranges from 3 to 24 cubic meters.
Q5: What safety measures do Garbage Trucks have?
A5: Garbage Trucks are equipped with safety features such as backup cameras, warning alarms, and front and rear safety bars to help protect the driver and other vehicles on the road.
