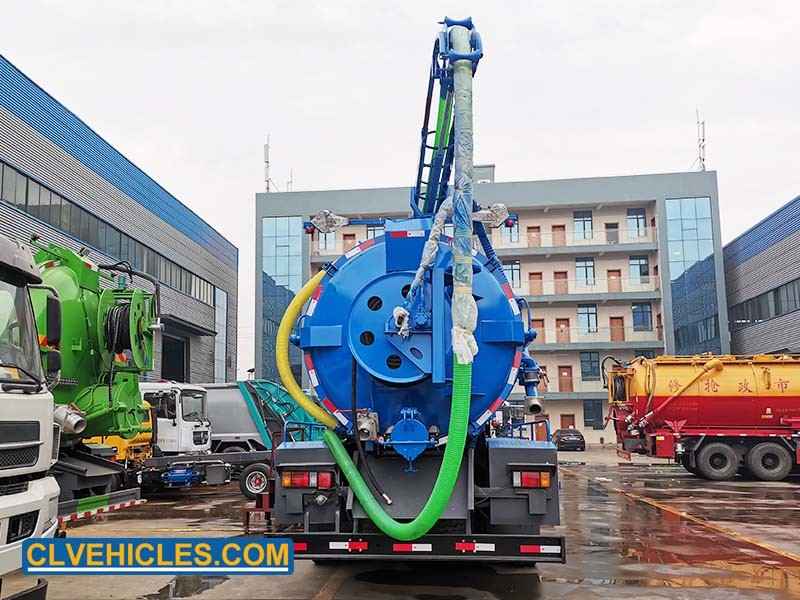

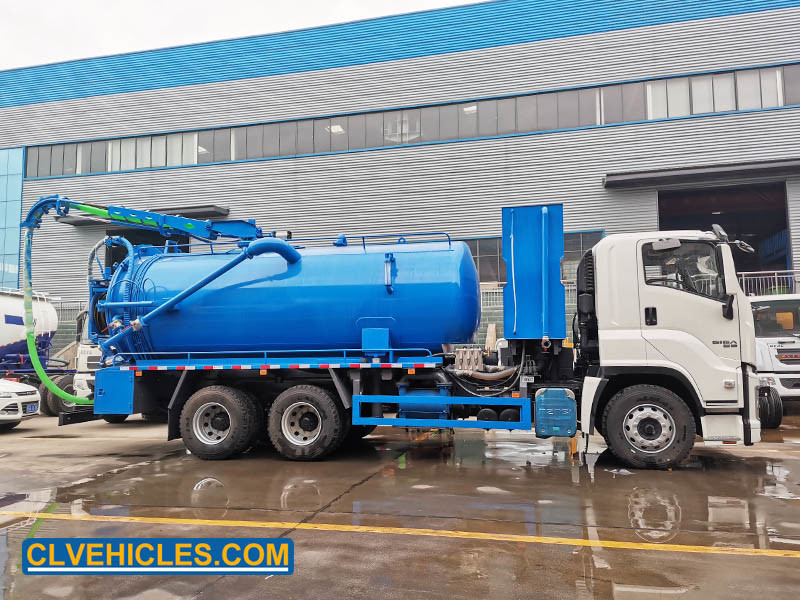

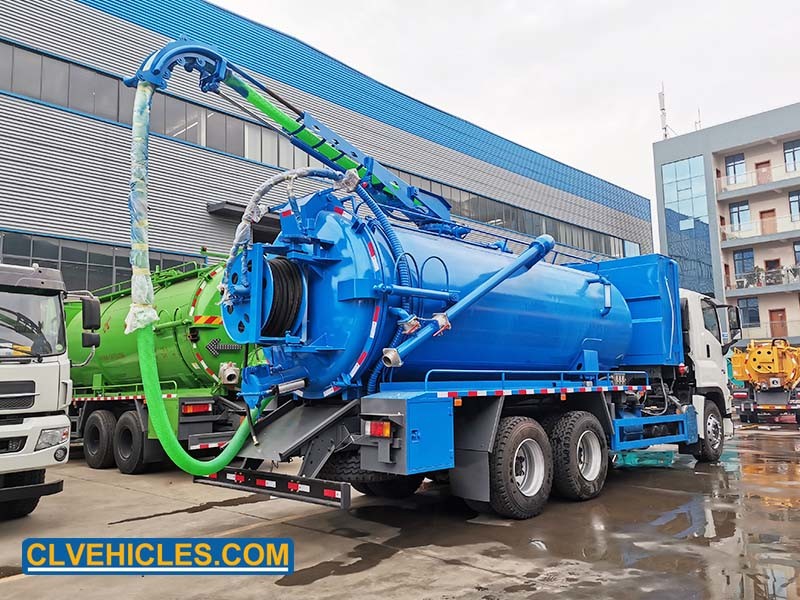

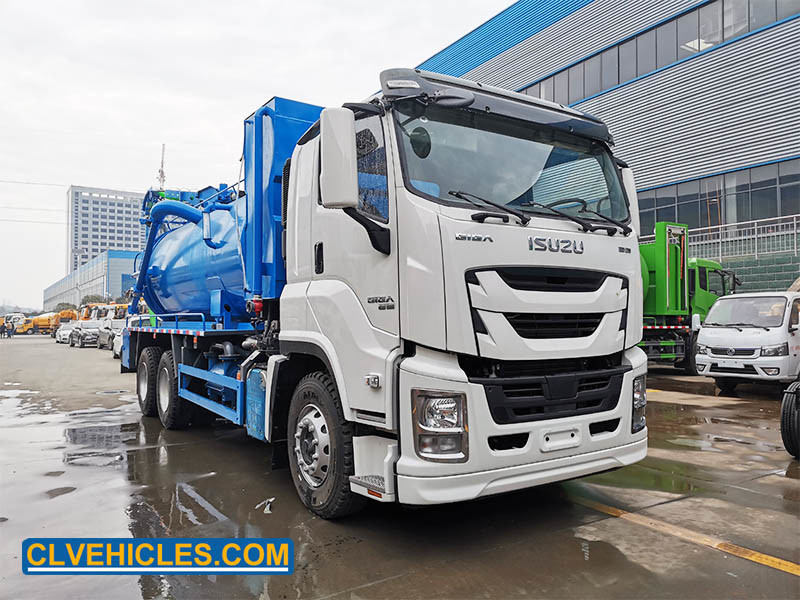

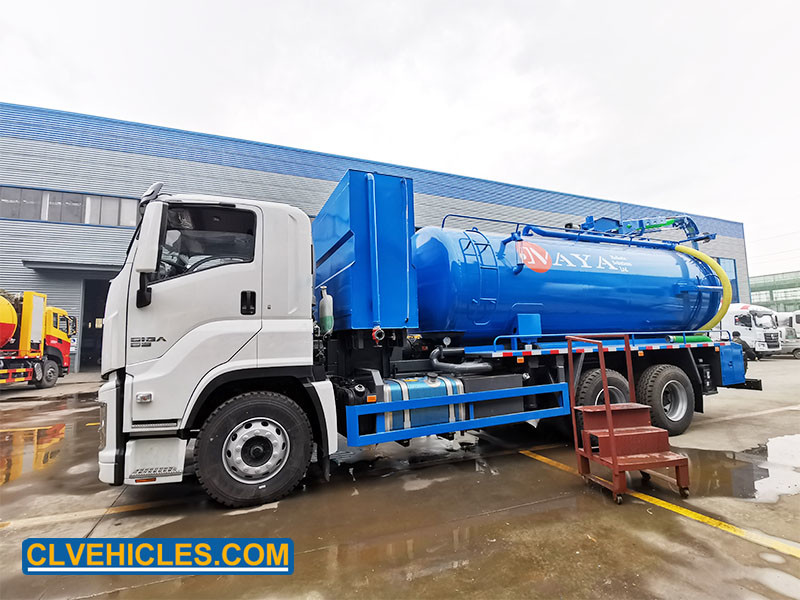

ISUZU GIGA 460hp 20000Liters Sewage Vacuum Pump Truck

Overview:

Sewage Vacuum Truck, also called Sewage Vacuum Vehicle, Sewage Vacuuming Truck, is a kind of special vehicle which is specially designed for the cleaning and suction of sewage. It is mainly composed of chassis, sewage tank, vacuum pump, hydraulic system, hydraulic lifting arm, high-pressure water gun, etc. This truck can be used to clean and suction the sewage in the urban sewers, residential areas, canteens, factories and other areas.

Chassis type of this sewage vacuum truck can be 4x2, 6x4, 8x4. It has a fuel tank capacity of 200-400 liters and a max gradeability of 35%. The front/rear overhang is 1,100/1,400 mm, and the tire specification is 10.00-20/11.00-20. The vacuum pump is of high-efficiency and is equipped with a hydraulic system for lifting arm operation. It is also equipped with a high-pressure water gun to facilitate the cleaning work.

Features:

• The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO).
• The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.
• The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.
• The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.

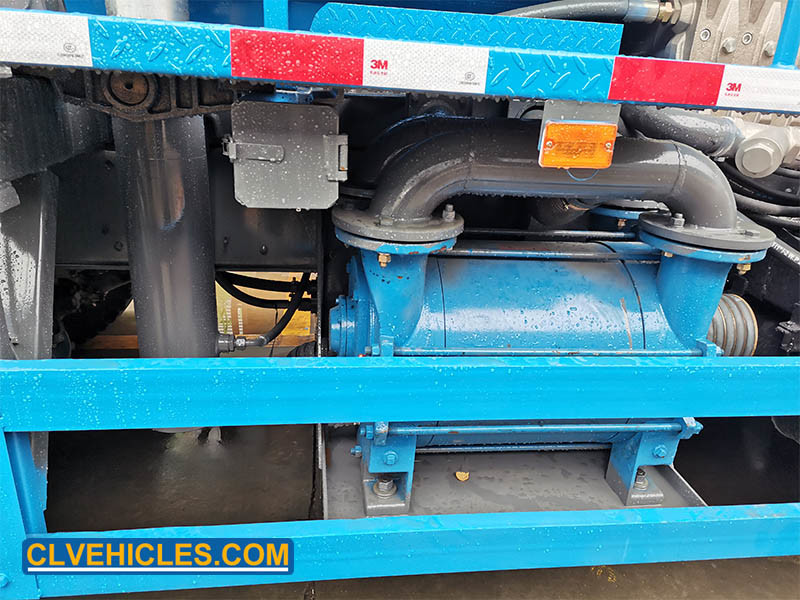

• Italy or Spain vacuum pumps ,Stainless steel, Anti-rust coating inside tank if necessary.
• Keywords: Vacuum Sewage Truck, Sewage Vacuum Vehicle, Sewage Vacuuming Truck



Technical Parameters:

Applications:

Sewage Vacuum Truck is an ideal vehicle for cleaning and transporting sewage. It is equipped with a powerful suction system for quickly and efficiently collecting sewage. It is perfect for cleaning sewers, pools, and other heavily contaminated areas. Sewage Vacuum Trucks are also widely used for collecting and transporting sewage from large cities to sewage treatment plants. They are reliable, strong, and efficient vehicles that can handle tough jobs in the most difficult of environments. With its advanced technology, it is the perfect choice for those looking for a reliable and cost-effective solution for their sewage suction and transportation needs. Sewage Vacuum Trucks for Sale are available from reliable suppliers, so you can be sure to get the best quality and performance at a great price.



Customization:

We provide custom-made sewage vacuum truck services, specifically for the needs of your project. Our sewage vacuum truck is designed to carry up to 20,000 liters and with a wheelbase of 2,400-5,500 mm in 4x2, or 6x4, 8x4 type chassis. You can select from either a single or double cab and also choose from a range of optional equipment such as high-pressure washer, pump, and cleaner.

The fuel tank capacity is 200-400 liters, making it perfect for sewage vacuuming and cleaning. Whether you need a vacuum cleaner sewage vehicle, sewage vacuuming vehicle, or vacuum sewage vehicle, our custom-made sewage vacuum truck is the perfect solution.

Support and Services:

Sewage Vacuum Truck Technical Support and Service

1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.

2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.

3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.

4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.

Packing and Shipping:

FAQ:

     A:We are direct manufacturer with more than 14 years experience.

2. Q:What is the lead time?

    A:Normally it will take 25-60 working days after getting down payment.

3. Q:How should I pay for you if I place order to you?

    A:We prefer TT,30% as deposit,balance before shipment, LC is also acceptable and negotiable.

4. Q:If I do not like the color, could I change the color?

    A:Yes,most of our trucks have standard colors , if all colors could not meet your needs, we could customized by your request.

5. Q:Can you supply the spare parts of this truck

    A:Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this.Once you need spare parts we can supply immediately.

6. Q:Do you have oversea service?

    A:When you have some problems which you can’t solve. we will arrange our engineers to your country to help you.

7. Q:How about your product quality?

    A:All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
