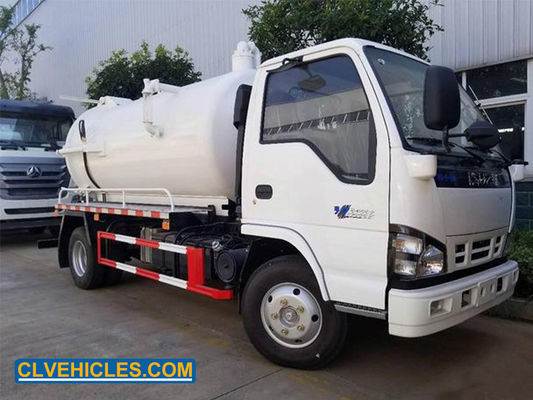

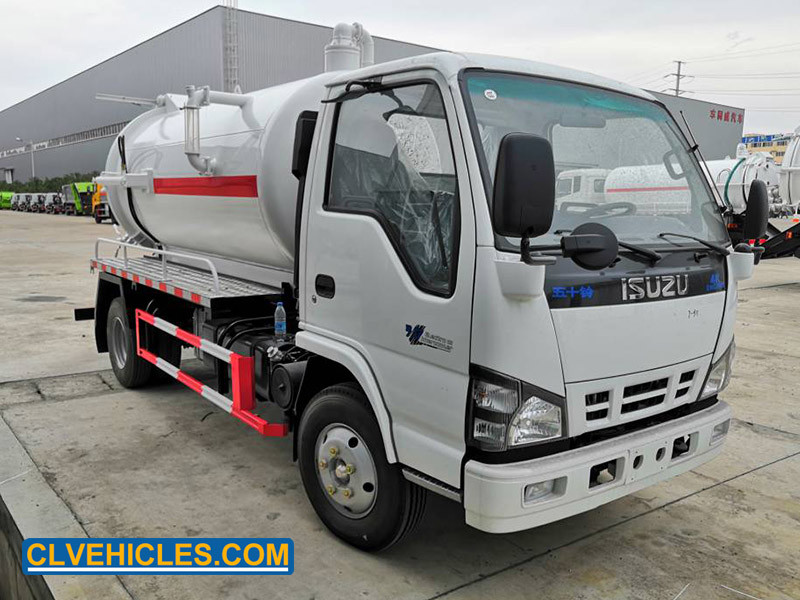

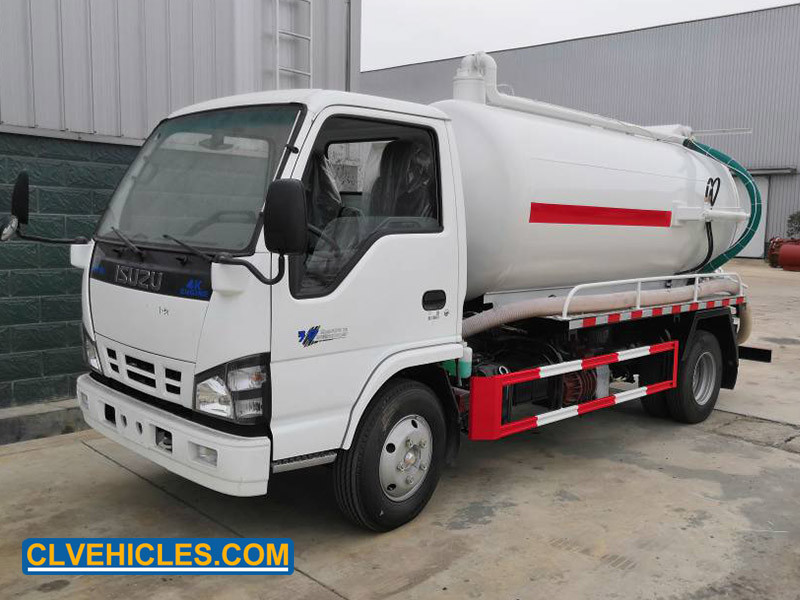

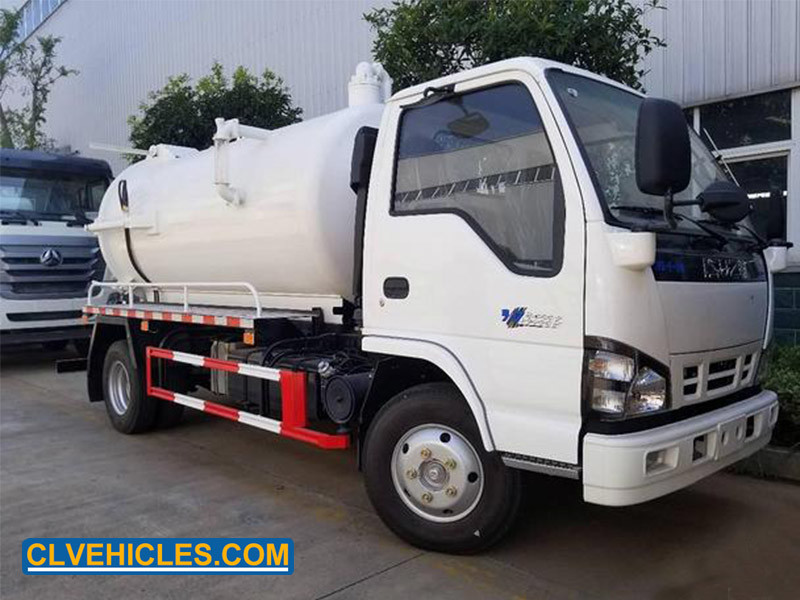

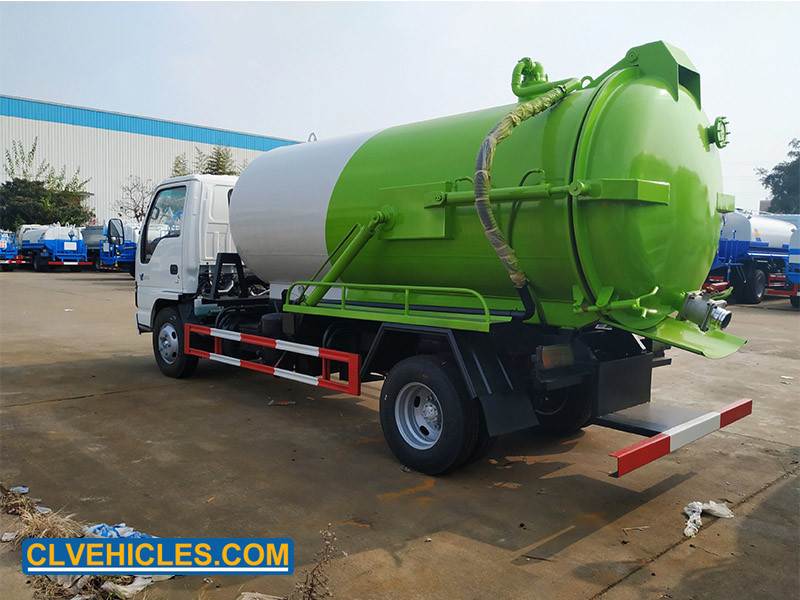

N Series ISUZU Sewage Suction Truck 4x2 Chassis 130hp
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5071GSXW2 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 25200- USD 29200/ UNIT |
| Delivery Time | 30-40 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 5,000L | Gross Vehicle Weight | 5,500kg |
|---|---|---|---|
| Wheelbase | 3,300-3,810 Mm | Max Suction Depth | 8m |
| Max Discharge Pressure | 1.2MPa | Vehicle Model | ISUZU Sewage Suction Truck |
| Engine Power | 120-150 Hp | Tire Specification | 7.00R16 |
| Max Gradeability | 35% | Material | Carbon Steel |
| Product Name | Sewage Vacuum Truck | Curb Weight | 3,500kg |
| Warranty | 12 Months | Transmission | 5-speed Manual |
| High Light | N Series ISUZU Sewage Suction Truck,ISUZU Sewage Suction Truck 4x2 Chassis,Sewage Suction Truck 130hp |
||
Product Description
ISUZU N-Series 4x2/ 130hp Automatic Sewage Vacuum Truck
Overview:
Our Sewage Vacuum Truck is a powerful vacuum cleaner vehicle that is designed to quickly and effectively clean up all kinds of sewage. It is equipped with a wheelbase of 3,400-4,500 mm and a max gradeability of 35%. Moreover, it boasts a max speed of 60 km/h and a tire specification of 10.00-20/11.00-20. This sewage vacuum cleaner truck is designed with reliability and efficiency in mind, making it the ideal solution for all kinds of sewage clean-up tasks. It is the perfect choice for any company looking for a reliable and efficient sewage vacuum vehicle.
Features:
- The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO).
- The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.
- The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.
- The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.
- Italy or Spain vacuum pumps ,Stainless steel, Anti-rust coating inside tank if necessary.
- Keywords: Vacuum Sewage Truck, Sewage Vacuum Vehicle, Sewage Vacuuming Truck
Technical Parameters:
| Chassis Specification | ||
| General | Chassis Brand | ISUZU |
| Overall dimension | 6000*2000*2980mm | |
| GVW | 7300kg | |
| Mass in working order | 3900kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Heating or cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 130hp | |
| Displacement | 2999ml | |
| Emission Standard | Euro 5 | |
| Chassis | Drive Type | 4*2(left hand driving) |
| Transmission | Manual | |
| Wheelbase | 3360mm | |
| Tire | 7.00R16(6+1) | |
| Max Speed | 90km/h | |
| Electric system | 12V | |
| Upper-Body Specification | ||
| Upper body | Body capacity | 5cbm |
| Material | Carbon Steel | |
| Suction Head Pipeline | 7m | |
| Vacuum Pump Brand | Italy BP/Weilong/Domestic | |
| Vacuum Pump Advantage |
High efficient, Vacuum rate 93%, Quick suction and discharge, suction lift 6 m |
|
| Hose | Wire strengthened hose | |
| Standard accessories | Inlet pipeline,Discharge nozzle,Cabin pneumatic control box,basic tool kit | |
| Optional | Back alarm and Camera can be equipped. | |
| Standard carbon steel,stainless steel optional. | ||
| Standard WEILONG vacuum pump,Italy vacuum pump. | ||
Applications:
Sewage Vacuum Truck is an ideal vehicle for cleaning and transporting sewage. It is equipped with a powerful suction system for quickly and efficiently collecting sewage. It is perfect for cleaning sewers, pools, and other heavily contaminated areas. Sewage Vacuum Trucks are also widely used for collecting and transporting sewage from large cities to sewage treatment plants. They are reliable, strong, and efficient vehicles that can handle tough jobs in the most difficult of environments. With its advanced technology, it is the perfect choice for those looking for a reliable and cost-effective solution for their sewage suction and transportation needs. Sewage Vacuum Trucks for Sale are available from reliable suppliers, so you can be sure to get the best quality and performance at a great price.
Customization:
Custom Sewage Vacuum Truck Service
We provide custom-made sewage vacuum truck services, specifically for the needs of your project. Our sewage vacuum truck is designed to carry up to 20,000 liters and with a wheelbase of 2,400-5,500 mm in 4x2, or 6x4, 8x4 type chassis. You can select from either a single or double cab and also choose from a range of optional equipment such as high-pressure washer, pump, and cleaner.
The fuel tank capacity is 200-400 liters, making it perfect for sewage vacuuming and cleaning. Whether you need a vacuum cleaner sewage vehicle, sewage vacuuming vehicle, or vacuum sewage vehicle, our custom-made sewage vacuum truck is the perfect solution.
Support and Services:
Sewage Vacuum Truck Technical Support and Service
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
Q1: What size of Sewage Vacuum Truck is available?
A1: We offer a range of sizes, ranging from small, medium and large.
Q2: How much does the Sewage Vacuum Truck weigh?
A2: The weight of the Sewage Vacuum Truck varies depending on the model, but typically it ranges from 5,000 to 10,000 lbs.
Q3: What types of materials can the Sewage Vacuum Truck be used to clean up?
A3: The Sewage Vacuum Truck can be used to clean up a variety of different materials, including sewage, sludge, and debris.
Q4: What types of features does the Sewage Vacuum Truck have?
A4: The Sewage Vacuum Truck is equipped with a range of features, including a powerful suction system, adjustable pressure settings, and an onboard water tank.
Q5: Does the Sewage Vacuum Truck come with a warranty?
A5: Yes, the Sewage Vacuum Truck comes with a one-year limited warranty.
