ISUZU NQR NPR Road Sweeper Truck 6 Wheels ISO9000 CCC Certification

Place of Origin China
Brand Name ISUZU
Certification CGC,ISO9001:2015,TUV SUD,PV,CNAS
Model Number CL5071GSSL6
Minimum Order Quantity 1 UNIT
Price USD 33200- USD 37200/ UNIT
Delivery Time 45-60 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fuel Diesel Use Burnishing
Cleaning Process Cold Water Cleaning Condition New
Control Type Electronic Control Auxiliary Engine Diesel Type
Flushing Type High Pressure Jetting Sweeper 4 Sets
Others Suction Divice With Automatic Avoidance Function Usage Road Sweeping And Jetting Cleaning
Sweeping Speed 3-20km/H Sweeping Width Max 3.5 Meters
Tank Clean Water Tank And Dirty Tank Driving Side Left/Right Hand Driving
Colour Customer′s Requirement Tank Material Stainless Steel
Product Name Road Sweeper Truck, Road Jetting Truck Transport Package Naked, RO-RO, Bulk. Container
Specification 6900mm*220mm0*2670mm HS Code 8705909990
After-sales Service Provided Type Sweep And Suck Type
Transmission Type Manual Customization Available | Customized Request
High Light

ISUZU NQR Road Sweeper Truck

,

ISUZU NPR Road Sweeper Truck

,

Road Cleaning Truck ISO9000

Leave a Message
Product Description

ISUZU NQR NPR Road Sweeper Truck 6 Wheels Road Sweeper Vacuum Truck

Product Description


What is a street sweeper truck?

A sweeper truck is a truck with brushes underneath for sweeping surfaces and gutters. They're often referred to as street sweepers or street cleaners, road sweeper, vacuum sweeper, etc, but they don't just clean streets. These versatile vehicles can be used in a number of ways. Any area that is paved can be cleaned with one of these trucks. They clean all manner of waste off of city streets, typically late at night or early in the morning, and they make street cleaning much more time-efficient than it used to be.

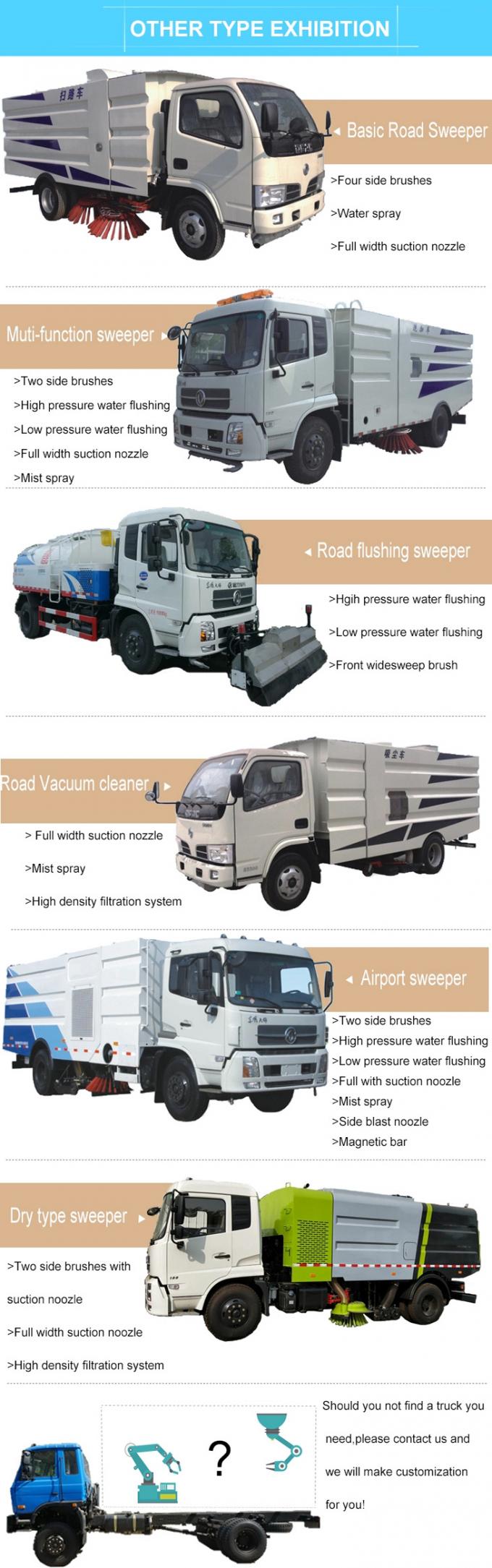

Different types of Street Sweeper

According to different Fuctions of the Sweeper Truck, we mainly can divide them into three types:

1. Vacuum Suction Truck, which has no sweepers but is with a long suction divice in the middle and two vice suction divices at side. This truck normally be used in the places where have heavy dust like ement factory, coal depot, seaports, etc.

2. Street Sweeper Truck, which is with a long suction divices in the middle and two sweepers at both sides. This type Truck can be used in streets where has little dust and garbages on the road could be easily cleaned.

3. Jetting Sweeper Truck, which has three fuctions: High pressure water jetting, Sweeping and Suction. This type truck not only has the sweeping and suction, but also can high pressure jetting garbages sticked on the ground. High Pressure Water Jetting Sweeper Truck makes road the cleanest.


ISUZU NQR NPR Road Sweeper Truck 6 Wheels ISO9000 CCC Certification 0

ISUZU NQR NPR Road Sweeper Truck 6 Wheels ISO9000 CCC Certification 1

ISUZU NQR NPR Road Sweeper Truck 6 Wheels ISO9000 CCC Certification 2





Product Parameters


Vehicle performance and parameters
Item Parameter Unit
Working Performance Max sweep width 3.2 m
Sweep speed 3-20 km/h
Max sweep capacity 60000 m2/h
Max inhalation of granularity ≥110 mm
Angle of unloading ≥45 .
Volume of water tank 3000 L
Volume of garbage tank 6000 L
Driving Performance Max speed 95 km/h
Max gradeability 30 %
Braking distance ≤10 m
Min turning diameter ≤13.6 m
Quality Parameter Curb weight 5100 kg
GVW 7300 kg
Dimension Parameter Overall dimensions 6830×2220×2450 mm
Wheelbase 3815 mm
Track front 1680 mm
Track rear 1640 mm
Front suspension 1155 mm
Rear suspension 1860 mm
Approach angle 17 .
Departure angle 25 .
Minimum Ground Clearance 200 mm




Iisuzu Road Sweeper Truck 6 Wheels Road Sweeper Vacuum Truck
Iisuzu Road Sweeper Truck 6 Wheels Road Sweeper Vacuum Truck
Iisuzu Road Sweeper Truck 6 Wheels Road Sweeper Vacuum Truck
