ISUZU 100P Street Sweeper Vacuum Truck 5CBM 98HP 16000kg LHD Rhd
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS |
| Model Number | CL5051GSSL2 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 29200- USD 35200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cleaning Process | Cold Water Cleaning | Condition | New |
|---|---|---|---|
| Truck | Vacuum Sweeper Truck | Gvw | 5000kg |
| Product | Street Sweeper Truck | Truck Name | Road Cleaning Truck |
| Drive Type | LHD | Transport Package | Nude Packing, Polished With Wax, Roro Or Bulk Ship |
| Specification | 1000L Water Tank And 4000L Garbage Tank | After-sales Service | One Year |
| Type | Wet-type | Transmission Type | Manual |
| Emission Standard | Euro 4 | Fuel | Diesel |
| Customization | Available | Customized Request | ||
| Highlight | Street Sweeper Vacuum Truck 5CBM,ISUZU 100P Street Sweeper Vacuum Truck |
||
Product Description
ISUZU 100P 5CBM 98HP Road Street Cleaning Sweeper Truck
Product Description
Road sweeper truck is also called street sweeper truck, street cleaning truck, road sweeper vehicle.
it combine the function of road sweeping, garbage collection and garbage transportation , is new type
efficient sanitation special cleaning vehicle.
It is made of chassis, vice engine, air blower, electromagnetic valve, dust tank, water tank, sucker,
sweeper brush,spraying water system, hydraulic system, electric control system, etc.
It is mainly used to sweep the road garbage of street, highway,dock, station, square,cement mill,
electric power plant, etc.
Product Parameters
| Vehicle performance and parameters | |||
| Item | Parameter | Unit | |
| Working Performance | Max sweep width | 3.2 | m |
| Sweep speed | 3-20 | km/h | |
| Max sweep capacity | 60000 | m2/h | |
| Max inhalation of granularity | ≥110 | mm | |
| Angle of unloading | ≥45 | . | |
| Volume of water tank | 3000 | L | |
| Volume of garbage tank | 6000 | L | |
| Driving Performance | Max speed | 95 | km/h |
| Max gradeability | 30 | % | |
| Braking distance | ≤10 | m | |
| Min turning diameter | ≤13.6 | m | |
| Quality Parameter | Curb weight | 5100 | kg |
| GVW | 7300 | kg | |
| Dimension Parameter | Overall dimensions | 6830×2220×2450 | mm |
| Wheelbase | 3815 | mm | |
| Track front | 1680 | mm | |
| Track rear | 1640 | mm | |
| Front suspension | 1155 | mm | |
| Rear suspension | 1860 | mm | |
| Approach angle | 17 | . | |
| Departure angle | 25 | . | |
| Minimum Ground Clearance | 200 | mm | |
Product Images

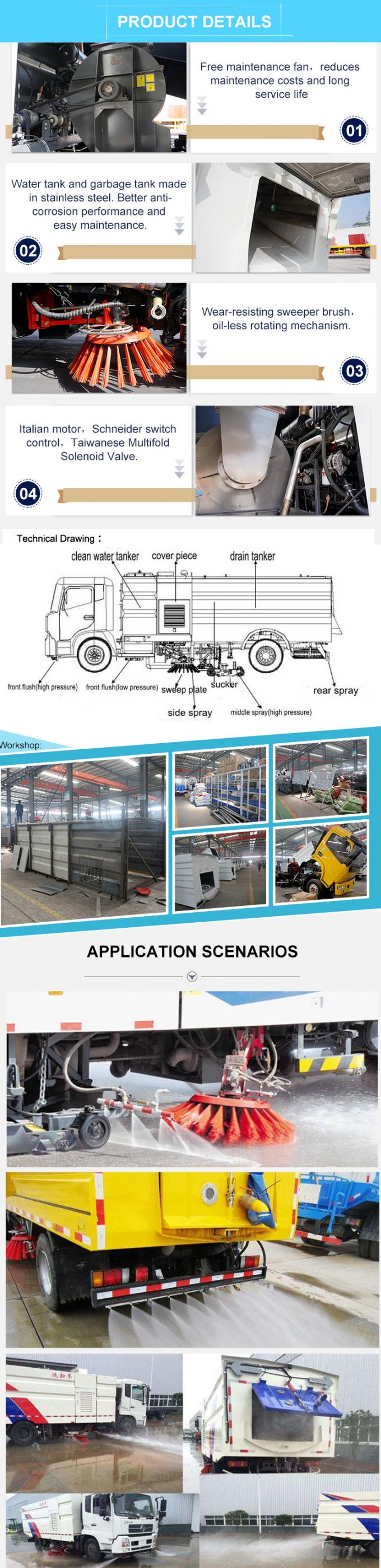

Product Details
