ISUZU KV600 130hp 5000L High Pressure Road Washing Truck
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS |
| Model Number | CL5071GSXS2 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 48200- USD 54200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fuel | Diesel | Use | Burnishing |
|---|---|---|---|
| Cleaning Process | Cold Water Cleaning | Condition | New |
| Control Type | Electronic Control | Auxiliary Engine | Diesel Type |
| Flushing Type | High Pressure Jetting | Sweeper | 2 Sets |
| Tank | Clean Water Tank And Dirty Tank | Others | Suction Divice With Automatic Avoidance Function |
| Colour | Customer′s Requirement | Tank Material | Stainless Steel |
| Sweeping Width | Max 3.5 Meters | Product Name | Road Sweeper Truck, Road Jetting Truck |
| Specification | 6900mm*220mm0*2670mm | Warranty | 12 Months |
| Type | Sweep And Suck Type | Transmission Type | Manual |
| Customization | Available | Customized Request | ||
| High Light | ISUZU KV600 Road Washing Truck,5000L Road Washing Truck,130hp Road Washing Truck |
||
Product Description
ISUZU KV600 130hp 5000L High Pressure Road Washing Truck
Description
What is a street sweeper truck?
A sweeper truck is a truck with brushes underneath for sweeping surfaces and gutters. They're often referred to as street sweepers or street cleaners, road sweeper, vacuum sweeper, etc, but they don't just clean streets. These versatile vehicles can be used in a number of ways. Any area that is paved can be cleaned with one of these trucks. They clean all manner of waste off of city streets, typically late at night or early in the morning, and they make street cleaning much more time-efficient than it used to be.

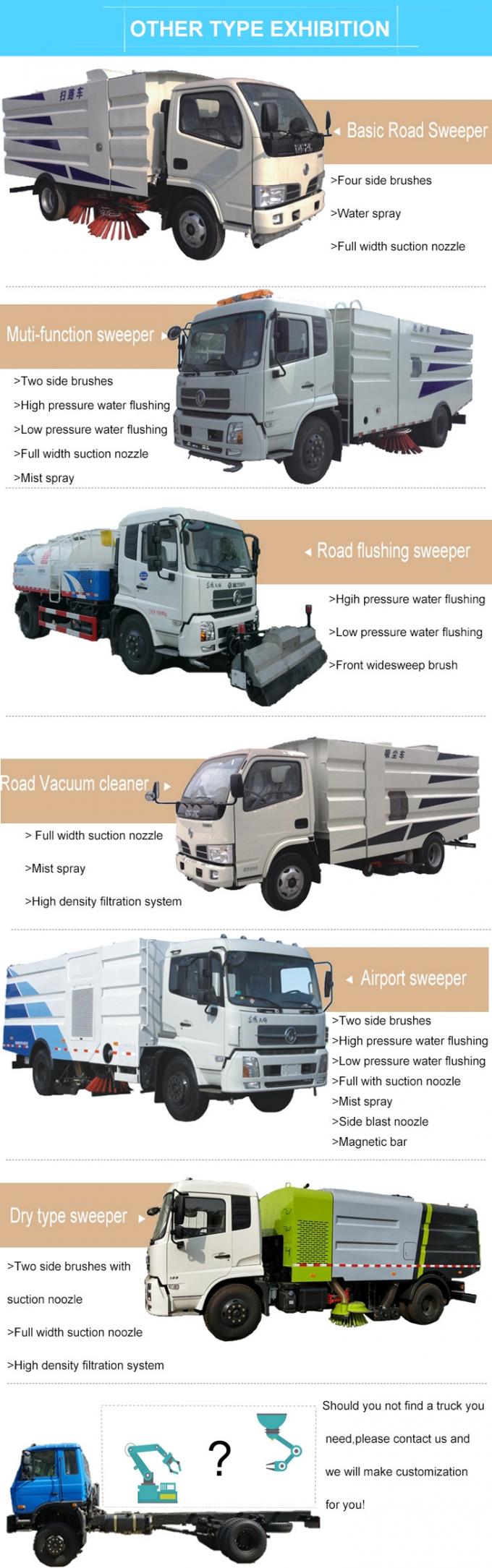

Different types of Street Sweeper
According to different Fuctions of the Sweeper Truck, we mainly can divide them into three types:
1. Vacuum Suction Truck, which has no sweepers but is with a long suction divice in the middle and two vice suction divices at side. This truck normally be used in the places where have heavy dust like ement factory, coal depot, seaports, etc.
2. Street Sweeper Truck, which is with a long suction divices in the middle and two sweepers at both sides. This type Truck can be used in streets where has little dust and garbages on the road could be easily cleaned.
3. Jetting Sweeper Truck, which has three fuctions: High pressure water jetting, Sweeping and Suction. This type truck not only has the sweeping and suction, but also can high pressure jetting garbages sticked on the ground. High Pressure Water Jetting Sweeper Truck makes road the cleanest.
A sweeper truck is a truck with brushes underneath for sweeping surfaces and gutters. They're often referred to as street sweepers or street cleaners, road sweeper, vacuum sweeper, etc, but they don't just clean streets. These versatile vehicles can be used in a number of ways. Any area that is paved can be cleaned with one of these trucks. They clean all manner of waste off of city streets, typically late at night or early in the morning, and they make street cleaning much more time-efficient than it used to be.
Different types of Street Sweeper
According to different Fuctions of the Sweeper Truck, we mainly can divide them into three types:
1. Vacuum Suction Truck, which has no sweepers but is with a long suction divice in the middle and two vice suction divices at side. This truck normally be used in the places where have heavy dust like ement factory, coal depot, seaports, etc.
2. Street Sweeper Truck, which is with a long suction divices in the middle and two sweepers at both sides. This type Truck can be used in streets where has little dust and garbages on the road could be easily cleaned.
3. Jetting Sweeper Truck, which has three fuctions: High pressure water jetting, Sweeping and Suction. This type truck not only has the sweeping and suction, but also can high pressure jetting garbages sticked on the ground. High Pressure Water Jetting Sweeper Truck makes road the cleanest.
| Road Sweeper Truck Upper-Body Specification | ||
| High pressure cleaning | ||
| Cleaning speed (km/h) | 3-20 | |
| Cleaning width(m) | 3.5 | |
| Cleaning pressure (Mpa) | 12 | |
| Pump flow(L/MIN) | 115 | |
| Suction sweep operation | ||
| Cleaning efficiency | ≥95% | |
| The maximum diameter of the suction body(mm) | 110 | |
| Suction sweep width(m) | 3 | |
| Maximum cleaning power (m²/h) | 60000 | |
| Butterfly dish brush overhang dimension(mm) | ≥400 | |
| Working speed (km/h) | 3-20 | |
| Water tank body | ||
| Rated capacity (m³) | 4 | |
| Material | Stainless steel | |
| Thickness | 4mm | |
| Other Configuration | Overflow or low level alarm device | |
| Garbage tank body | ||
| Rated capacity (m³) | 2 | |
| Material | Stainless steel | |
| Thickness | 4mm | |
| Other Configuration | Overflow or low level alarm device | |
| Discharge door opening angle | ≥45º | |
| Hydraulic system | ||
| Model | Open, electrical control | |
| The main element | Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve | |
| Pressure (mpa) | 16 | |
| Hydraulic oil tank capacity (l) | 60 | |
| Hydraulic oil temperature (ºC) | 60 | |
| Electrical system | ||
| Model | DC24V | |
| voltage | 12V | |
| Battery | 12V | |
| High pressure water system | ||
| Type | Piston pump | |
| Model | German PF36 | |
| Pressure (Mpa) | 10 | |
| Rotating speed (r/min) | 1150 | |
| Valve type | Pilot pressure valve | |
| Pressure for valve (Mpa) | 7 | |
| Nozzle type | High pressure cleaning | |
| Water filter | Strainer | |
| Sprinkle system | ||
| The main elements | Electric diaphragm pump, water filters, nozzles, etc. | |
| Sweeper disk device | ||
| Number | 2 pieces | |
| Model | Center two sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function | |
| Diameter (mm) | 850 | |
| Speed | High :110 medium: 80 ,low :50 | |
| Angel | Forward 4-6º roll 4-7º | |
| Sucker device | ||
| Model | Double suction port, hydraulically controlled, spring suspension. | |
| Diameter (mm) | 200 | |
