Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS |
| Model Number | CL5071GKZY5 |
| Minimum Order Quantity | 1 UNIT |
| Delivery Time | 45-60 work days |
| Payment Terms | USD 36900- USD 42200/ UNIT |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Transmission Type | Manual | Condition | New |
|---|---|---|---|
| Supporting Leg | Hydraulic | Hook Loading | 1000kg |
| Control Mode | Hydraulic Or Electronic | Bucket Size | 1200*600*1100mm |
| Boom Type | Folading Or Telescopic | Rotating Speed | 0-2 R/Min |
| Bucket Loading | 200kg | Rotation Angle | 360 |
| Working Radius | 4-15m | Working Height | 6-22m |
| Transport Package | Nude Packing With Wax | Specification | 6990*2100*2500 |
| High Light | High Altitude Truck 14M,Aerial Cage High Altitude Truck |
||
Product Description
Product Description
Hydraulic Aerial Cage 14M Telescopic Boom Aerial Working Truck High Altitude Platform Truck
Product Parameters
| Vehicle Description | |||||
| Vehicle model | Platform Truck | Overall dimensions (mm) | 7640×1990×3150 | ||
| GVW (kg) | Appro×6800 | Operational height (m) | 16 | ||
| Mass in working order (kg) | Appro×5185 | Max. Speed (km/h) | 95 | ||
| Chassis Description | |||||
| Cab | Crew cab with A/C | ||||
| Allowable person in cab | 5 | ||||
| Wheel base (mm) | 3360 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 2000 | |||
| Rear axle | 4800 | ||||
| Operation control system | Power steering | ||||
| Braking system | Oil brake | ||||
| Transmission | 5-speed MSB | ||||
| Tire specification | 7.00R16 | ||||
| Tire quantity | 6+1 | ||||
| Engine Description | |||||
| Engine manufacture | ISUZU Engines | ||||
| Engine model | 4KH1CN5HD | ||||
| Emission standard | Euro 5 | ||||
| Up-parts Description | |||||
| Bucket | |||||
| Max. working height | 16m | ||||
| Max. working radius (m) | 7 | ||||
| Working height at max. radius (m) | 9 | ||||
| Working radius at max. height (m) | 2 | ||||
| Rated loading (kg) | 200 | ||||
| Type | Three section , articulated | ||||
| Rotation Angle | 360 | ||||
| Thickness of boom plate | 4mm | ||||
|
Max. rising angle of upper and lower boom |
70/70 | ||||
| Max. rising angle of small boom | 90 | ||||
| Outrigger | |||||
| Type | H | ||||
| Vertical Breadth (mm) | 3300 | ||||
| Horizontal Breadth (mm) | 3380 | ||||
| Adjustment | Adjusted separately | ||||
| Hook | |||||
| Max. Lifting height (m) | 8.4 | ||||
| Max. Lifting Weight (kg) | 1000 | ||||

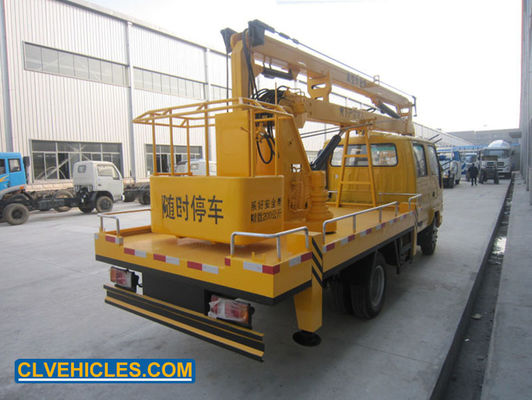

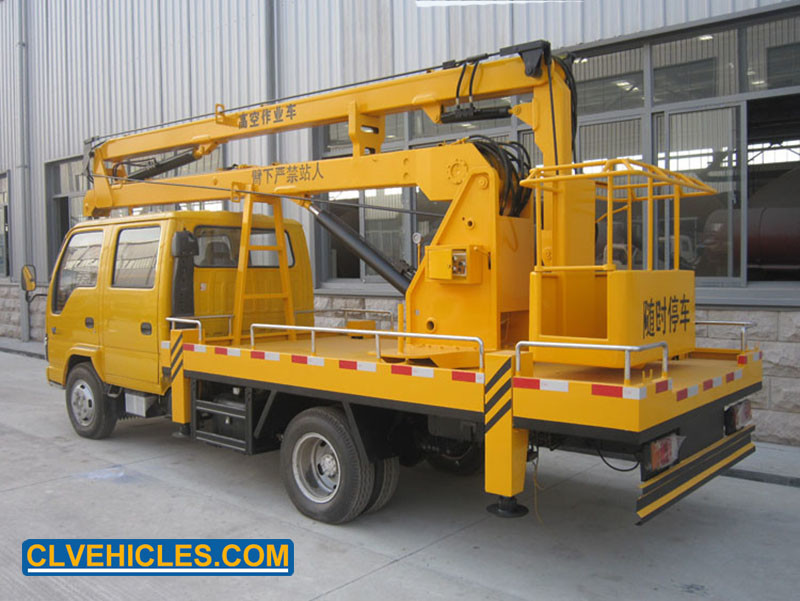

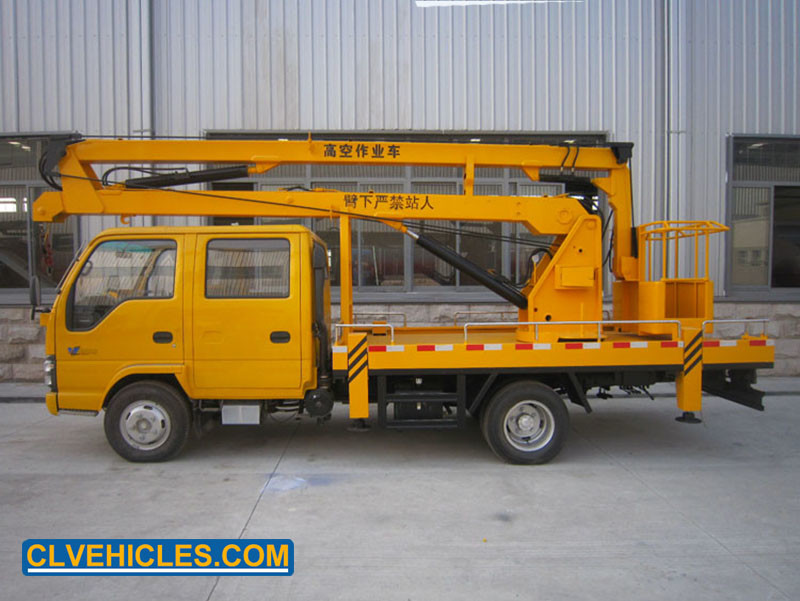

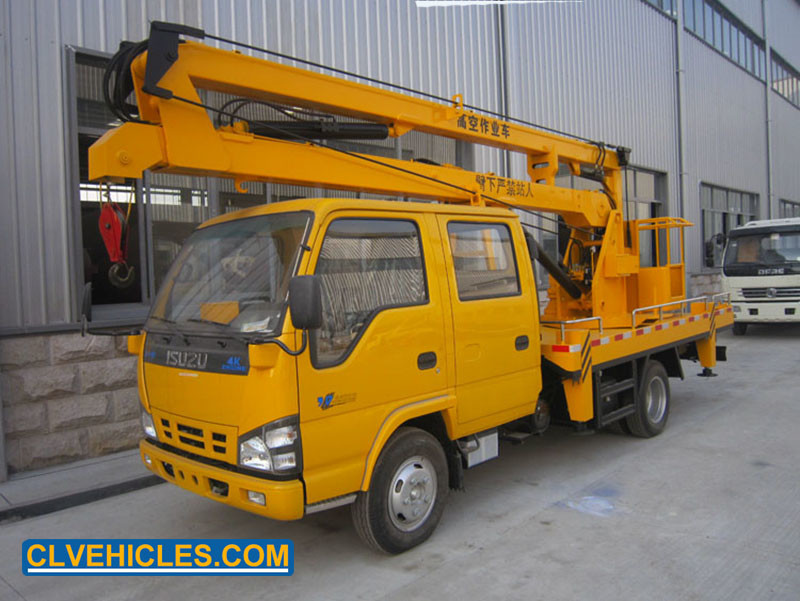

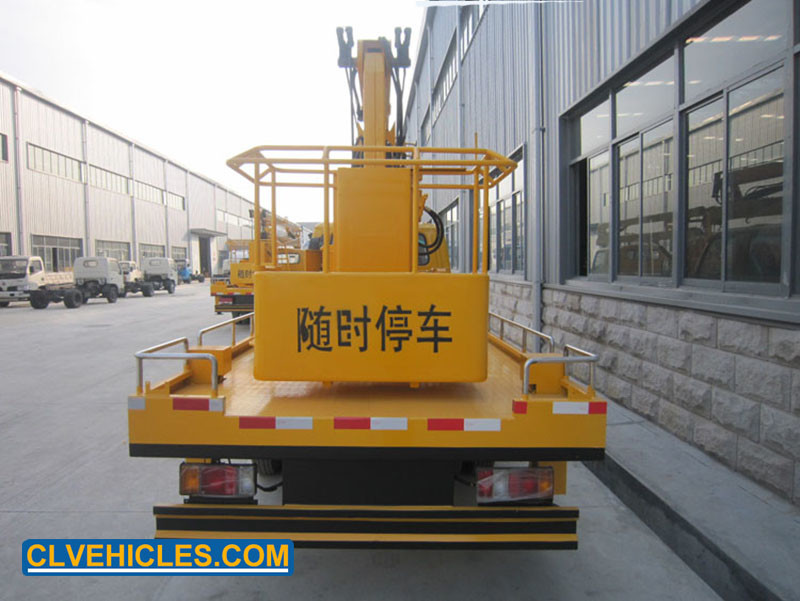

Product Images

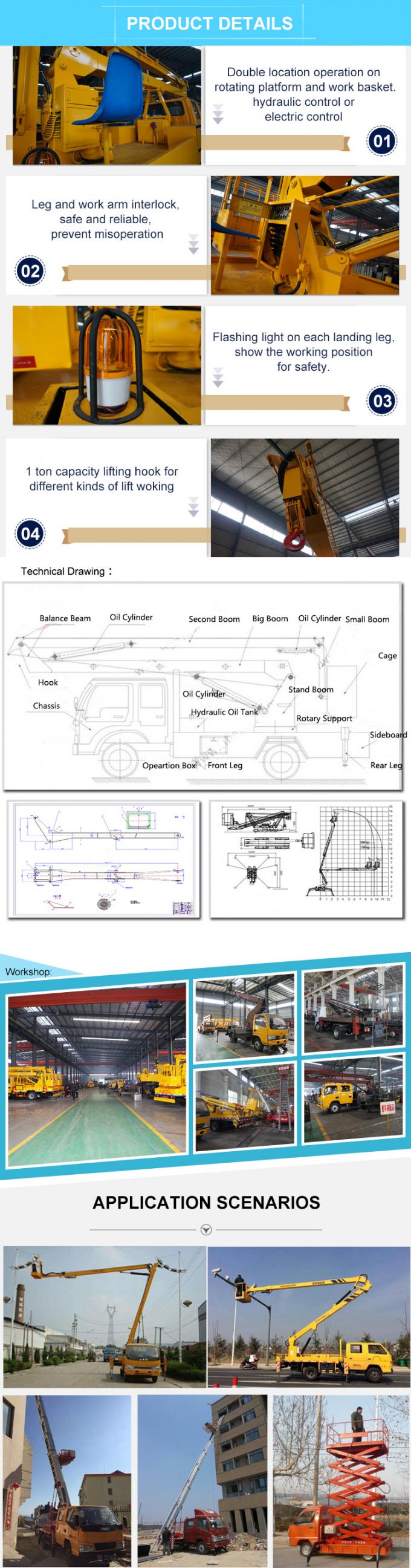

Product Details
