14m ISUZU 100P ELF Telescopic Boom Aerial Platform Truck
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Payload | 4t | Fuel | Diesel |
|---|---|---|---|
| Transmission Type | Manual | Drive Wheel | 4x2 |
| Condition | New | Engine | 98HP |
| Tire | 7.00-16 | Hydraulic Leg | 4sets |
| Other | Include FM, Power Steering | Air Condition | Include |
| Material | Carbon Steel | Transmit | Hydraulic |
| Loading Weight | 5tons | Lifting Height | 14m |
| Size | 6100*2300*3220mm | Transport Package | Bulk |
| Origin | Hubei, China | HS Code | 8705909990 |
| Highlight | Telescopic Boom Aerial Platform Truck,14m Aerial Platform Truck |
||
Product Description
ISUZU 14m Telescopic Boom Man Lift Truck Aerial Platform Truck for Sale
Product Description
1suzu Scissor Lift Platform Truck, also called Man Lift Working Truck, Aerial Man Lift Truck, Scissor Lift Working Truck, Scissor Lift Platform Special Truck.
The Scissor Lift Platform Truck has 2-3 folding arms and provides temporary access for people or equipment to inaccessible height areas. The arm shaft is compact,flexible and large operating range. Four hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.
The aerial bucket platform working height can reach to 12 to 42meters
A telescopic boom aerial work platform, commonly referred to as a telescopic boom lift or a telescopic crane truck, is a highly versatile mobile elevating work platform (MEWP) designed for a variety of aerial tasks at heights.

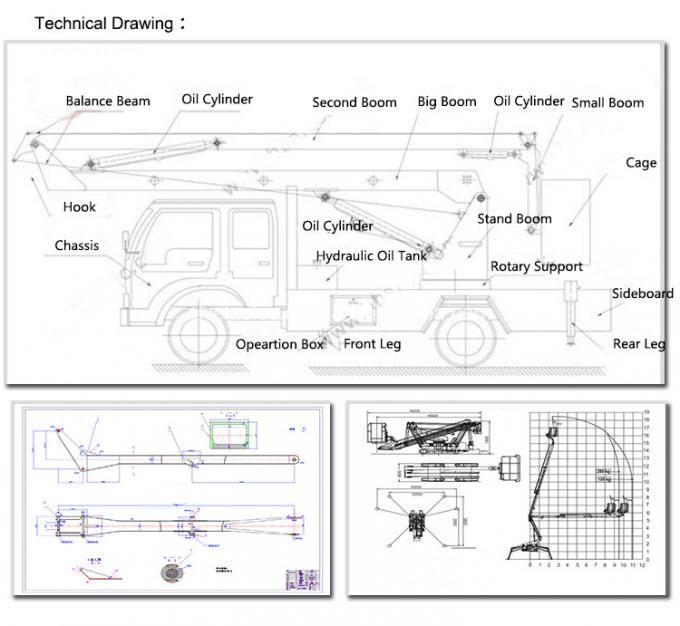

Telescoping Boom Arm: The key feature of this vehicle is its extendable boom arm, which consists of multiple nested sections that telescope out hydraulically. This allows the platform or basket to reach great heights and also to extend horizontally, providing extensive outreach capabilities and precise positioning.

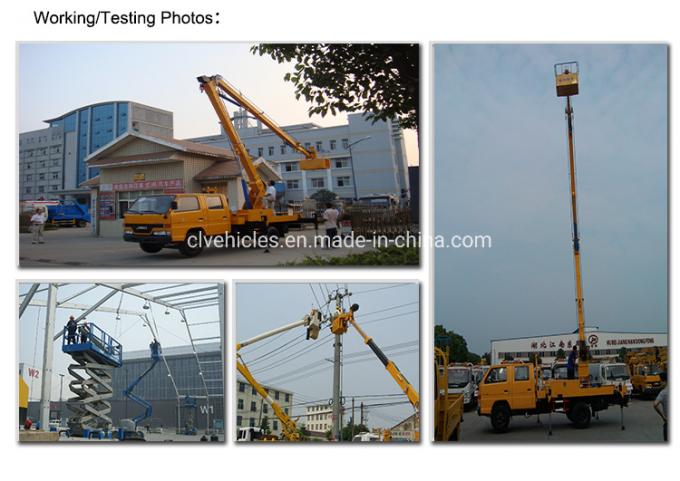

Versatile Working Range: The telescopic boom offers a wide working envelope, enabling workers to access hard-to-reach areas such as tall buildings, utility poles, bridges, and tree trimming jobs. It provides a stable and secure platform for maintenance, installation, inspection, and repair work.
| Vehicle Description | |||||
| Vehicle model | Platform Truck | Overall dimensions (mm) | Approx. 6000*2050*3050 | ||
| GVW (kg) | Approx.5555 | Operational height (m) | 14 | ||
| Mass in working order (kg) | Approx.4995 | Max. Speed (km/h) | 90 | ||
| Chassis Description | |||||
| Chassis brand | ISUZU | ||||
| Cab | Double row cab with A/C | ||||
| Wheel base (mm) | 3360 | ||||
| Number of axles | 2 | ||||
| Axle | Front axle | 2000 | |||
| Rear axle | 3000 | ||||
| Traction system | 4x2 | ||||
| Operation control system | Power steering | ||||
| Braking system | Oil brake | ||||
| Transmission | 5-speed MSB | ||||
| Tire specification | 7.00-15 | ||||
| Tire quantity | 6+1 | ||||
| Engine Description | |||||
| Engine manufacture | ISUZU Engines | ||||
| Engine model | 4JB1CN | ||||
| Type | Water-cooled four-stroke, supercharged inter-cooling | ||||
| Emission standard | Euro 4 | ||||
| Up-parts Description | |||||
| Working condition | |||||
| Max. working height (m) | 14 | ||||
| Working radius at Max. height (m) | 2 | ||||
| Max. working radius (m) | 8 | ||||
| Working height at Max. radius (m) | 9 | ||||
| Control mode |
1.Bucket control 2.Manual operation |
||||
| Bucket | |||||
| Rated loading (kg) | 250 | ||||
| Size (mm) | 1400*700*1100 | ||||
| Material | Stainless steel | ||||
| Adjusting balance mode | Hydrostatic Leveling System | ||||
| Safety belt | 1 set | ||||
| Boom | |||||
| Type | Telescopic type | ||||
| Section | 3 | ||||
| Rotation Angle | 360 | ||||
| Thickness of boom plate (mm) | 4 | ||||
| Max. rising angle of boom | -20º ~ +75° | ||||
| Outrigger | |||||
| Type | Front V type / Rear H type | ||||
| Vertical Breadth (mm) | 4000 | ||||
| Horizontal Breadth (mm) | 4000 | ||||
| Number | 4 | ||||
| Adjustment | Adjusted separately | ||||
| Supporting leg Control mode | Manual hydraulic operation | ||||
| Hydraulic lock | Two-way hydraulic lock for four legs | ||||
| Strobe light on rear landing legs | Two yellow lights | ||||
| Main body structure | |||||
| Material | High quality carbon steel and profiles, with slip-proof decorative steel plates | ||||
| Tool box | Mould stamping door with stainless steel door lock | ||||
| Fencing | Stainless steel tube | ||||
| Steps | With steps on drivers’ side | ||||
| Guard railing | High quality cold bending carbon steel profile; High strength | ||||
| Wheel casing | Injection mold molding, beautiful, high strength | ||||
| Security configuration | |||||
| Automatic interlock device for different operating position | Prevent the risk of misoperation | ||||
| Hand-operated emergency pump | When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state | ||||
| Emergency stop device for working platform | Used for emergency stop operation and restricted boom operation | ||||
| Automatically limit work range | When the working range reaches the specified value, the dangerous direction is automatically restricted. | ||||
| Leakage protection device | Equipped with leakage protector to ensure the safety of power supply and power tools | ||||
