ISUZU Fuel Tanker Truck With Hose Reel And Rollover Protection System

Place of Origin China
Brand Name ISUZU
Certification CGC,ISO9001:2015,TUV SUD,PV,CNAS,
Model Number CL5041GSYG1
Minimum Order Quantity 1 UNIT
Price USD 24200- USD 27200/ UNIT
Delivery Time 45-60 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Carbon Steel Axles 2
Transmission 5-speed Manual Safety Features Anti-lock Brakes, Rollover Protection System
Cab Type Single Row Cab Color White
Drive Type 4x2 Horsepower 98HP
Product Name ISUZU Fuel Tanker Truck Tank Capacity 3000L
Tank Material Carbon Steel Tank Thickness 5mm
Wheelbase 3360 Mm
High Light

Electric ISUZU Fuel Tanker Truck

,

ISUZU Fuel Tanker Truck Hose Reel

Leave a Message
Product Description

Digital Fuel Tanker Truck with Hose Reel and Rollover Protection System

Overview:

The Fuel Tanker Truck is a heavy-duty vehicle designed to transport oil, gasoline, and other petroleum products safely and efficiently. This truck features an air brakes system, anti-lock brakes, and a rollover protection system for added safety and reliability. It is also equipped with a manual transmission and an electric pump to ensure smooth and efficient delivery of fuel. This truck is the perfect choice for any oil transportation and tanker truck needs.

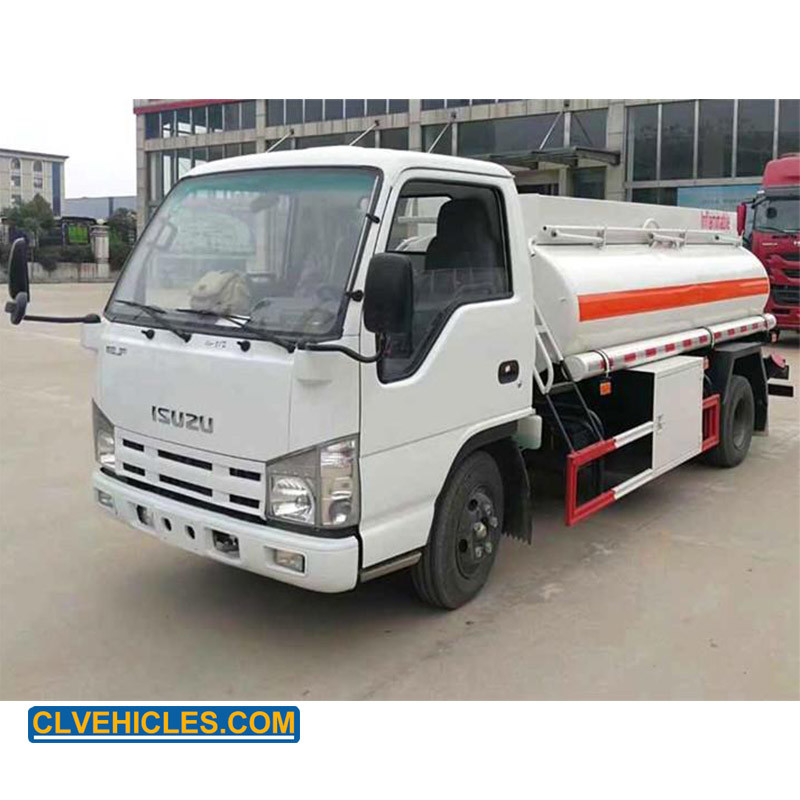

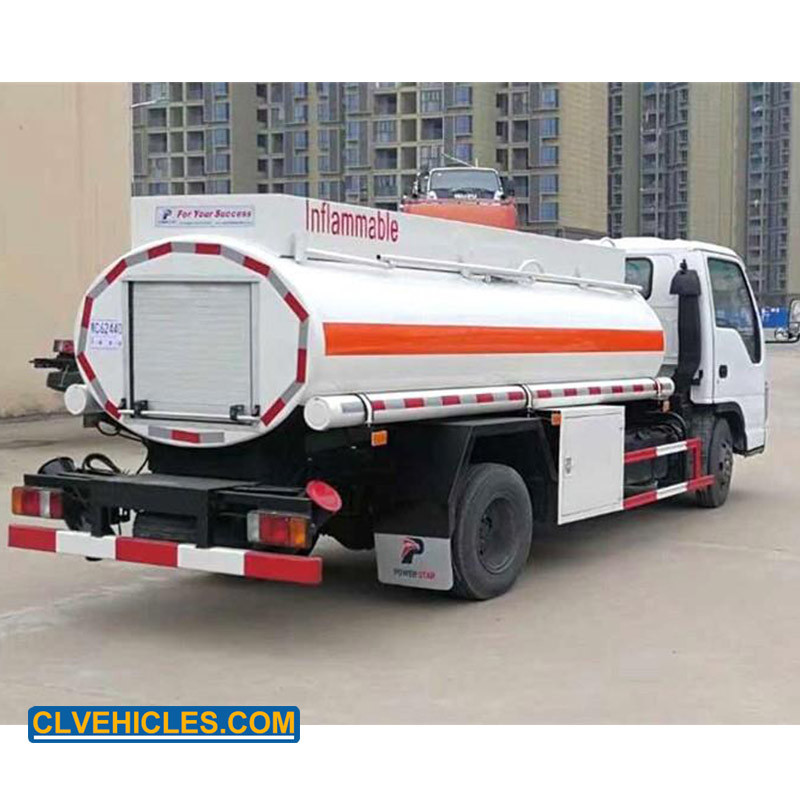

ISUZU Fuel Tanker Truck  With Hose Reel And Rollover Protection System 0ISUZU Fuel Tanker Truck  With Hose Reel And Rollover Protection System 1

Features:

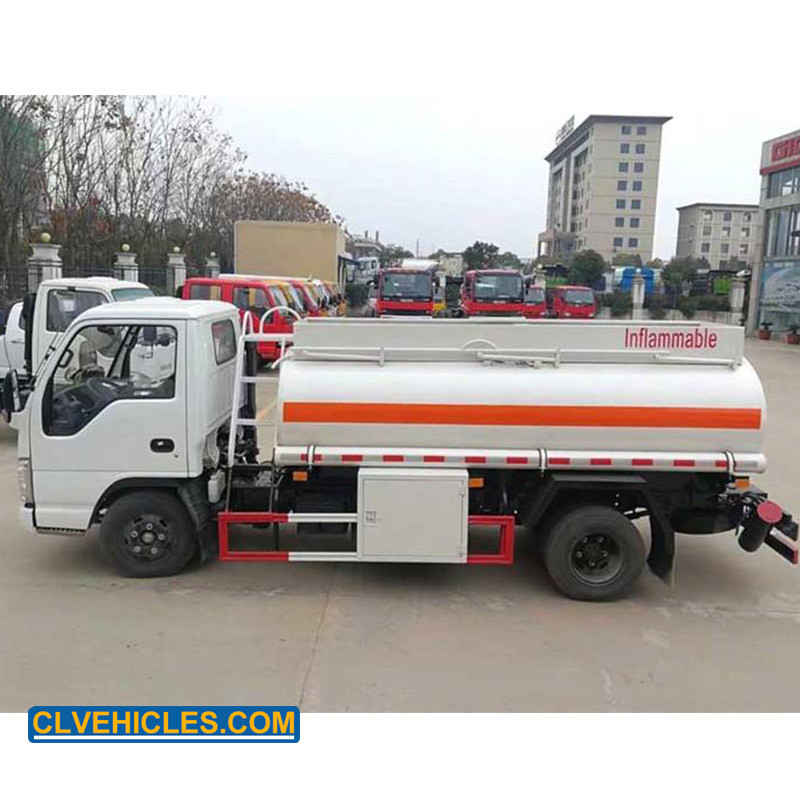

ISUZU Fuel Tanker Truck  With Hose Reel And Rollover Protection System 2

Technical Parameters:


Chassis Specification
Cab Single row cab, with power steering. Electronic flameout
Driving Type 4*2 Left hand driving
Max Speed (km/h) 90
Overall dimension (mm) 5990×1960×2200
GVW (kg) 5500
Mass in working order (kg) 3450
Wheelbase (mm) 3360
Tire 6.50-15
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box 5-speed
Bridge Front axle 2.5T
Rear axle 3T
Engine Model 4JB1CN
Fuel Type Diesel fuel
Type Water-cooled four-stroke,, direct injection, turbocharged
Exhaust (ml) 2771
Max output power/rotate speed (hp /rpm ) 98/3400
Braking system Service Brake Hydraulic oil brake
Park Brake Spring energy
Electric system 24v
Superstructure Specification
Fuel tank
Volume of tank 3000L
Tank shape Quadrate
Material of tanker High Quality Q235 carbon steel
Thickness of tank 4mm
Color of the tanker According your demands
Transport medium Diesel oil, gasoil or others
Safety accessories
Manhole cover European standard cover
Anti-overflow probe
Gas recovery joint
Bottom Filling Device API discharge valve
Pumping outlet & inlet
Oil and gas recovery valve
Anti-overflow anti-static socket
Percolator
Bottom of tank valve Emergency valve
Refueling machine Refueling machine with refueling reel & gun
Length of refueling reel 15m



Applications:

Fuel tanker truck is a gasoline transport truck designed for efficient fuel delivery. This truck is equipped with a manual transmission and a toolbox, so it can handle tough terrain and heavy loads. It also features a digital meter to measure the amount of fuel delivered and a stainless steel body for ultimate durability. Additionally, it is equipped with air brakes for improved safety. This is an ideal choice for fuel delivery applications that require reliable manual transmission, a toolbox, digital meter, stainless steel body, and air brakes.

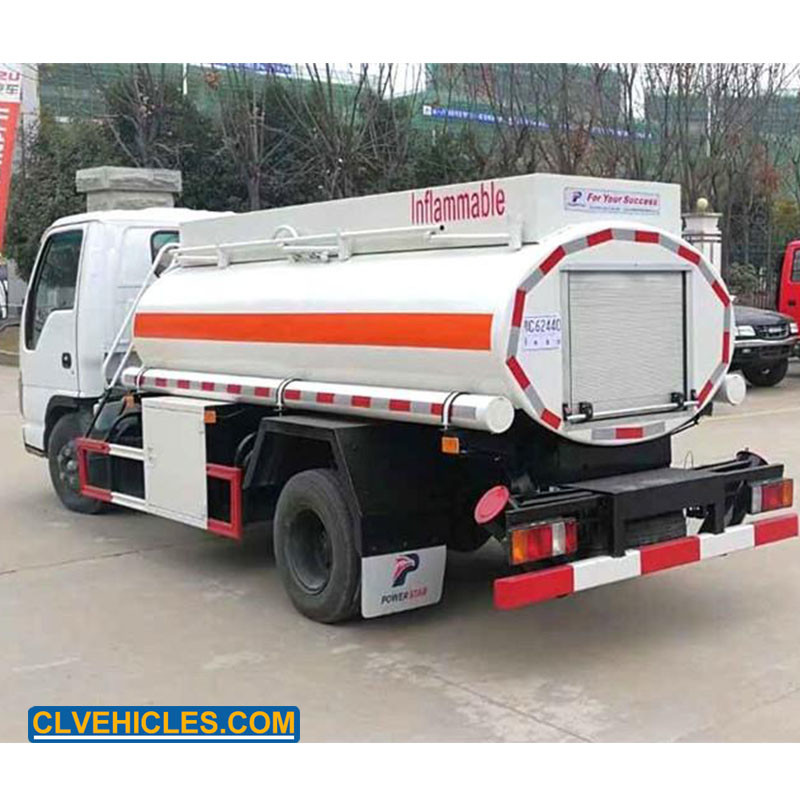

 ISUZU Fuel Tanker Truck  With Hose Reel And Rollover Protection System 3

Customization:

Customize Your Fuel Tanker Truck

Are you looking for an Oil Tanker Truck, Gasoline Transport Truck, or Fuel Delivery Truck? Get the perfect vehicle for your needs with our customizable Fuel Tanker Truck.

 ISUZU Fuel Tanker Truck  With Hose Reel And Rollover Protection System 4

Support and Services:

Fuel Tanker Truck Technical Support and Service

We provide technical support and service for our Fuel Tanker Truck product. Our experienced technicians are available to assist you with any technical issues or questions you may have. We provide both online and telephone support, and are happy to answer any questions you may have about our Fuel Tanker Truck.



1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.

2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.

3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.

4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.



Packing and Shipping:

For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.

ISUZU Fuel Tanker Truck  With Hose Reel And Rollover Protection System 5



FAQ:

  • Q: What is a Fuel Tanker Truck?
    A: A Fuel Tanker Truck is a heavy-duty vehicle specifically designed to transport large quantities of fuel over long distances.
  • Q: What is the capacity of a Fuel Tanker Truck?
    A: The capacity of a Fuel Tanker Truck can vary from 5,000 gallons to 11,000 gallons.
  • Q: What materials are used to build a Fuel Tanker Truck?
    A: Fuel Tanker Trucks are usually constructed with high-grade steel and aluminum for maximum durability.
  • Q: What safety features are included in a Fuel Tanker Truck?
    A: Fuel Tanker Trucks are equipped with a variety of safety features such as anti-lock brakes, air brakes, rollover protection, fire extinguishers, and more.
  • Q: How often should a Fuel Tanker Truck be serviced?
    A: It is recommended that Fuel Tanker Trucks be serviced every 6 months or according to the manufacturer's recommended intervals.
