700P 4x2 ISUZU Fuel Tanker Truck 8000L Refueling Oil Tank Truck
| Place of Origin | China |
|---|---|
| Brand Name | ISUZU |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | CL5111GSYG1 |
| Minimum Order Quantity | 1 UNIT |
| Price | USD 32500- USD 37200/ UNIT |
| Delivery Time | 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meter | Digital | Accessories | Toolbox |
|---|---|---|---|
| Axles | 2 | Transmission | Manual |
| Brand | ISUZU | Cab Type | Flat Head Cab |
| Capacity | 3000L | Drive Type | 4×2 |
| Emission Standard | Euro 5 | Engine | ISUZU 4HK1 |
| Material | Carbon Steel | Model | Fuel Tanker Truck |
| Tire Number | 6 | Wheelbase | 4475mm |
| High Light | 4x2 ISUZU Fuel Tanker Truck,700P ISUZU Fuel Tanker Truck,Refueling Oil Tank Truck |
||
Product Description
ISUZU 700P 4x2 190hp 8000L Refueling Oil Tank Delivery Truck
Overview:

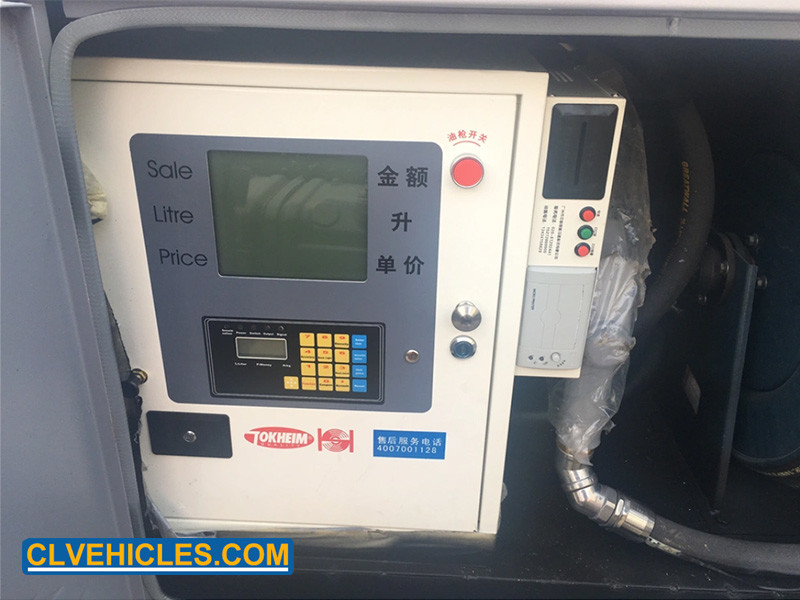

This Fuel Tanker Truck is an ideal solution for carrying gasoline, liquid and other hazardous materials. It features a heavy-duty chassis, air brakes, manual transmission and two axles, making it an ideal choice for long distance transportation. The digital meter helps to accurately monitor fuel levels, ensuring safe and efficient operation. The tank has been designed to meet the highest safety standards, making it the perfect choice for carrying hazardous materials. With its reliable performance and low operational cost, the Fuel Tanker Truck is the best choice for your transportation needs.
Features:
Technical Parameters:
| Truck Specification | |||
| Cab | ISUZU 700P CABIN | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 99 | ||
| Overall dimension(mm) | 7940*2190*2580 | ||
| GVW(kg) | 12000 | ||
| Mass in working order(kg) | 5540 | ||
| Tank Capacity (L) | 12000 | ||
| Wheelbase(mm) | 4475 | ||
| Tire | 235/75R17 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | MLD 6-speed | ||
| Bridge | Front axle | 4T | |
| Rear axle | 7T | ||
| Enging | Model | 4HK1-TC51 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 5913 | ||
| Max output power/rotate speed (hp /rpm ) | 190 | ||
| Max torque/rotate speed(N.m/rpm) | 510 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Volume of tank | 8m3 | ||
| Tank shape | Quadrate | ||
| Material of tanker | 5mm carbon steel | ||
| Color of the tanker | According your demands | ||
| Transport medium | Diesel oil, gasoil or others | ||
| Fittings | PTO oil pump | ||
| An aluminum alloy European standard manhole | |||

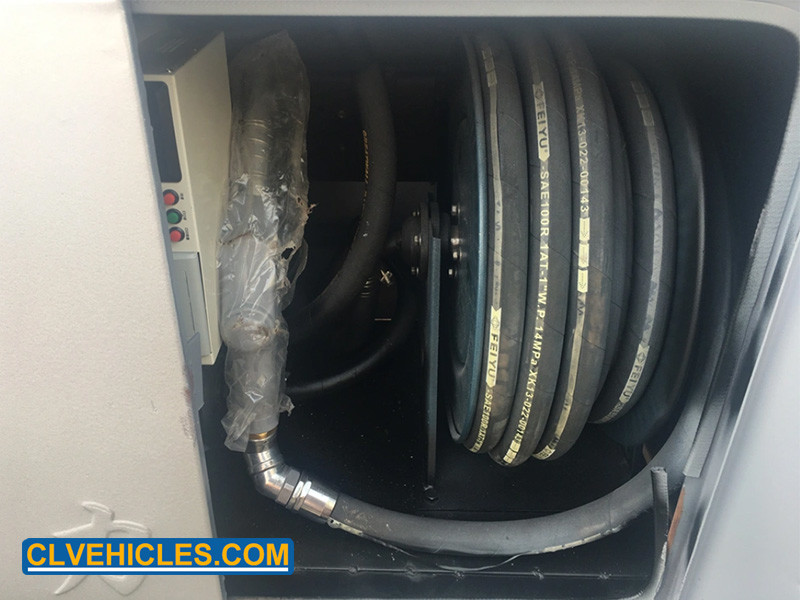

| Fuel hose box fitted on both side of tank | |||
| An aluminum alloy sea valves | |||
| Two Fire extinguisher | |||
| One spare tyre | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| Heavy-duty rear bumper | |||
Applications:
Fuel tanker truck is a gasoline transport truck designed for efficient fuel delivery. This truck is equipped with a manual transmission and a toolbox, so it can handle tough terrain and heavy loads. It also features a digital meter to measure the amount of fuel delivered and a stainless steel body for ultimate durability. Additionally, it is equipped with air brakes for improved safety. This is an ideal choice for fuel delivery applications that require reliable manual transmission, a toolbox, digital meter, stainless steel body, and air brakes.
Customization:
Customize Your Fuel Tanker Truck
Are you looking for an Oil Tanker Truck, Gasoline Transport Truck, or Fuel Delivery Truck? Get the perfect vehicle for your needs with our customizable Fuel Tanker Truck.
Support and Services:
Fuel Tanker Truck Technical Support and Service
We provide technical support and service for our Fuel Tanker Truck product. Our experienced technicians are available to assist you with any technical issues or questions you may have. We provide both online and telephone support, and are happy to answer any questions you may have about our Fuel Tanker Truck.
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
- Q: What is a Fuel Tanker Truck?
A: A Fuel Tanker Truck is a heavy-duty vehicle specifically designed to transport large quantities of fuel over long distances. - Q: What is the capacity of a Fuel Tanker Truck?
A: The capacity of a Fuel Tanker Truck can vary from 5,000 gallons to 11,000 gallons. - Q: What materials are used to build a Fuel Tanker Truck?
A: Fuel Tanker Trucks are usually constructed with high-grade steel and aluminum for maximum durability. - Q: What safety features are included in a Fuel Tanker Truck?
A: Fuel Tanker Trucks are equipped with a variety of safety features such as anti-lock brakes, air brakes, rollover protection, fire extinguishers, and more. - Q: How often should a Fuel Tanker Truck be serviced?
A: It is recommended that Fuel Tanker Trucks be serviced every 6 months or according to the manufacturer's recommended intervals.
