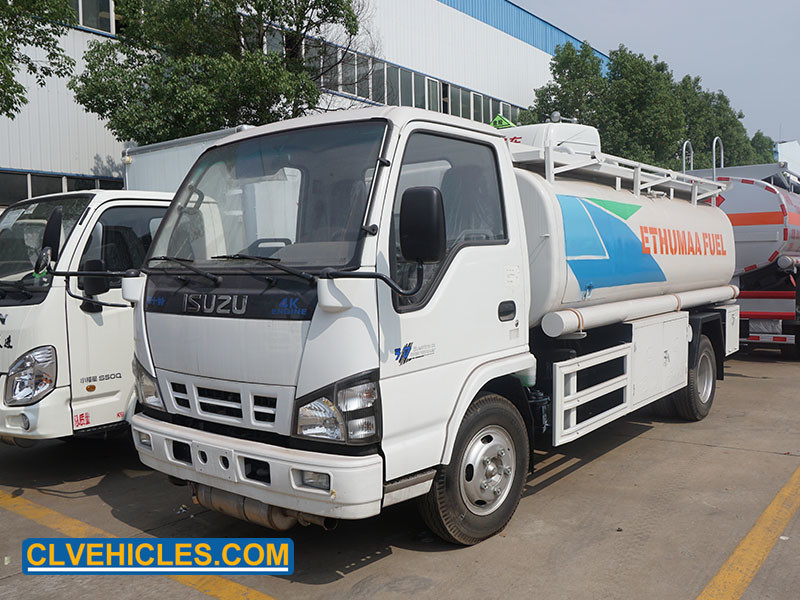

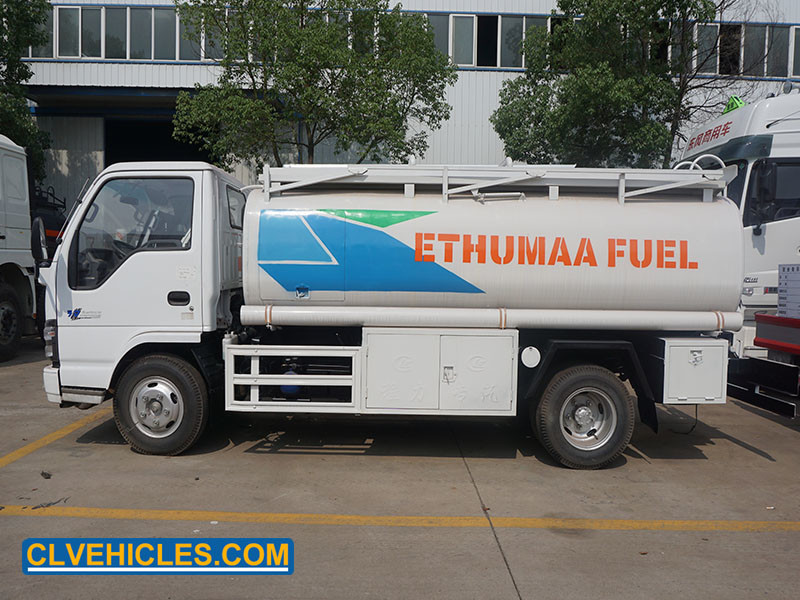

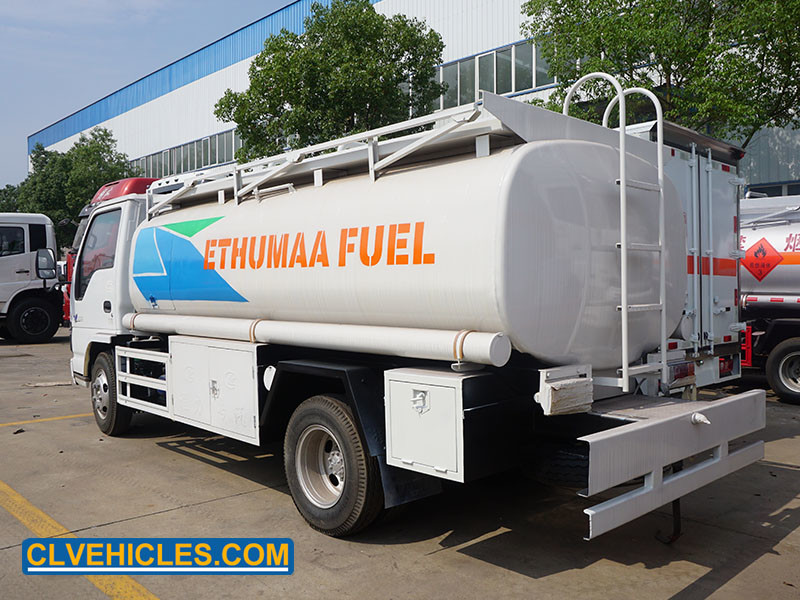

ISUZU 600P 130hp 5000 Liters Refuelling Tanker Truck

Place of Origin China
Brand Name ISUZU
Certification CGC,ISO9001:2015,TUV SUD,PV,CNAS,
Model Number CL5071GSYG1
Minimum Order Quantity 1 UNIT
Price USD 28700- USD 35200/ UNIT
Delivery Time 45-60 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Carbon Steel Engine ISUZU 4KH1
Accessories Toolbox Axles 2
Chassis Light-duty Capacity 5,000 Liters
Color White Curb Weight 3,400kg
Gross Vehicle Weight 7,300kg Horsepower 130HP
Model Fuel Tanker Truck Tire Size 7.00R16
Transmission 5-speed Manual Wheelbase 3,815mm
High Light

Commercial Tanker Truck 20000 Liters

,

Digital Oil Commercial Tanker Truck

,

Oil Truck Tanker Radial Tires

Leave a Message
Product Description

ISUZU 600P 130hp 5000 Liters Refuelling Tanker Truck

Overview:

The Fuel Tanker Truck is a heavy-duty, stainless steel petroleum tanker truck powered by a diesel engine and equipped with an electric pump and hose reel. This oil tanker truck is the perfect solution when you need to transport gasoline, oil, and other fuels over long distances. It is designed to offer maximum safety and efficiency for your fuel transportation needs. This gasoline tanker truck is perfect for those looking for a reliable and safe way to transport petroleum products.

ISUZU 600P 130hp 5000 Liters Refuelling Tanker Truck 0ISUZU 600P 130hp 5000 Liters Refuelling Tanker Truck 1

Features:

ISUZU 600P 130hp 5000 Liters Refuelling Tanker Truck 2

Technical Parameters:


Chassis Specification
Cab Single row cab, with power steering. Electronic flameout
Driving Type 4*2 Left hand driving
Max Speed (km/h) 110
Overall dimension (mm) 6995*1960*2650
GVW (kg) 7000
Mass in working order (kg) 3450
Wheelbase (mm) 3815
Tire 7.00R16
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box 5-speed
Axle Front axle 2.5T
Rear axle 4.8T
Engine Model 4KH1CN5HD
Fuel Type Diesel fuel
Type Water-cooled, four-stroke, direct injection, turbocharged
Exhaust (ml) 2999
Max output power/rotate speed (hp /rpm) 130/2900
Max torque/rotate speed (N.m /rpm) 290/1500
Braking system Service Brake Oil brake
Park Brake Spring energy
Superstructure Specification
Fuel tank
Design Volume 5000L
Tank shape Ellipsoid
Material of tank High Quality Q235 Carbon steel
Thickness of tank 4mm
Transport medium Diesel, gasoline
Safety accessories
Manhole cover European standard cover
Anti-overflow probe
Gas recovery joint
Bottom Filling Device API discharge valve
Pumping outlet & inlet
Oil and gas recovery valve
Anti-overflow anti-static socket
Percolator
Bottom of tank valve Emergency valve
Refueling machine Portable machine with refueling reel & gun
Length of refueling reel 15m


Applications:

Fuel tanker truck is a gasoline transport truck designed for efficient fuel delivery. This truck is equipped with a manual transmission and a toolbox, so it can handle tough terrain and heavy loads. It also features a digital meter to measure the amount of fuel delivered and a stainless steel body for ultimate durability. Additionally, it is equipped with air brakes for improved safety. This is an ideal choice for fuel delivery applications that require reliable manual transmission, a toolbox, digital meter, stainless steel body, and air brakes.

 ISUZU 600P 130hp 5000 Liters Refuelling Tanker Truck 3

Customization:

Customize Your Fuel Tanker Truck

Are you looking for an Oil Tanker Truck, Gasoline Transport Truck, or Fuel Delivery Truck? Get the perfect vehicle for your needs with our customizable Fuel Tanker Truck.

 ISUZU 600P 130hp 5000 Liters Refuelling Tanker Truck 4

Support and Services:

Fuel Tanker Truck Technical Support and Service

We provide technical support and service for our Fuel Tanker Truck product. Our experienced technicians are available to assist you with any technical issues or questions you may have. We provide both online and telephone support, and are happy to answer any questions you may have about our Fuel Tanker Truck.



1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.

2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.

3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.

4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.



Packing and Shipping:

For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.

ISUZU 600P 130hp 5000 Liters Refuelling Tanker Truck 5



FAQ:

  • Q: What is a Fuel Tanker Truck?
    A: A Fuel Tanker Truck is a heavy-duty vehicle specifically designed to transport large quantities of fuel over long distances.
  • Q: What is the capacity of a Fuel Tanker Truck?
    A: The capacity of a Fuel Tanker Truck can vary from 5,000 gallons to 11,000 gallons.
  • Q: What materials are used to build a Fuel Tanker Truck?
    A: Fuel Tanker Trucks are usually constructed with high-grade steel and aluminum for maximum durability.
  • Q: What safety features are included in a Fuel Tanker Truck?
    A: Fuel Tanker Trucks are equipped with a variety of safety features such as anti-lock brakes, air brakes, rollover protection, fire extinguishers, and more.
  • Q: How often should a Fuel Tanker Truck be serviced?
    A: It is recommended that Fuel Tanker Trucks be serviced every 6 months or according to the manufacturer's recommended intervals.
