20 CBM ISUZU Fuel Tanker Truck Stainless Steel Petroleum Tanker Truck

Place of Origin China
Brand Name ISUZU
Certification CGC,ISO9001:2015,TUV SUD,PV,CNAS,
Model Number CL5181GSYG1
Minimum Order Quantity 1 UNIT
Price USD 60800- USD 64200/ UNIT
Delivery Time 45-60 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Suspension Heavy-duty Meter Digital
Axles 2 Safety Features Anti-lock Brakes, Rollover Protection System
Color White Dimensions 8500*2500*3200mm
Engine ISUZU 6HK1 Gearbox 6-speed Manual
Gross Vehicle Weight 18000kg Model ISUZU Fuel Tanker Truck
Power 240hp Wheelbase 5550mm
High Light

20 CBM ISUZU Fuel Tanker Truck

,

ISUZU Fuel Tanker Truck Stainless Steel

,

Stainless Steel Petroleum Tanker Truck

Leave a Message
Product Description

20 CBM Stainless Steel Petroleum Tanker Truck with Heavy-duty Chassis

Overview:

Our Fuel Tanker Truck is designed to transport fuel and oil with maximum safety and efficiency. It features a Hose Reel for easy access, a Toolbox for accessories, LED Lighting for visibility, an Electric Pump for effortless operation, and advanced safety features such as Anti-lock Brakes and a Rollover Protection System for added protection. This Fuel Tanker Truck is perfect for businesses looking for a reliable and secure way to transport fuel and oil.

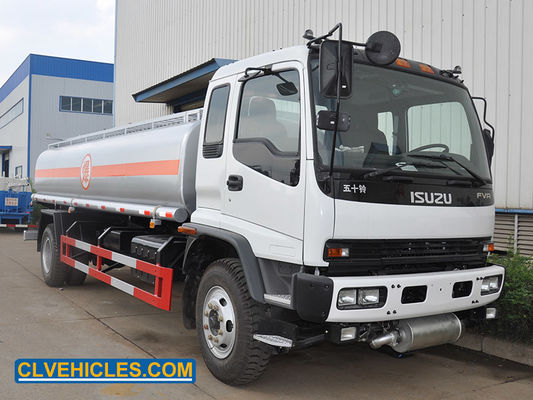

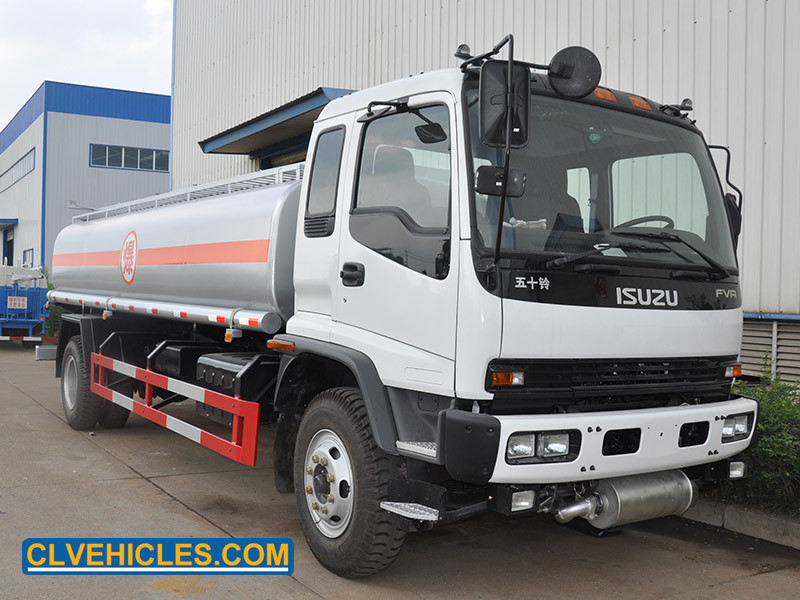

20 CBM ISUZU Fuel Tanker Truck Stainless Steel Petroleum Tanker Truck 020 CBM ISUZU Fuel Tanker Truck Stainless Steel Petroleum Tanker Truck 1

Features:

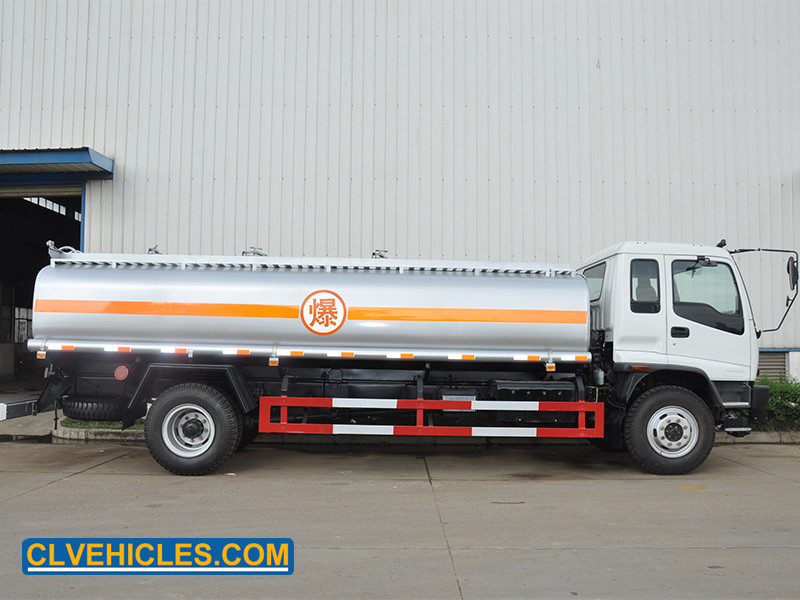

20 CBM ISUZU Fuel Tanker Truck Stainless Steel Petroleum Tanker Truck 2

Technical Parameters:


Chassis Specification
Cab ISUZU FVR CABIN
Driving Type 4*2 Left hand driving
Max Speed (km/h) 90
Overall dimension (mm) 9000*2480*3050
GVW (kg) 20000
Curb weight (kg) 8000
Tank Capacity (L) 18000
Wheelbase (mm) 5550
Tire 295/80R22.5
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box MLD 6-speed
Bridge Front axle 6.3T
Rear axle 13T
Engine Model 6HK1-TCL
Fuel Type Diesel fuel
Type Water-cooled four-stroke,, direct injection, turbocharged
Exhaust (ml) 7790
Max output power/rotate speed (hp /rpm ) 240
Max torque/rotate speed(N.m/rpm) 6.3T
Braking system Service Brake Compressed air brake
Park Brake Spring energy
Auxiliary brake engine exhaust brake
Electric system 24v
Upper-Body Specification
Volume of tank 18m3
Tank shape Squircle
Material of tanker 5mm carbon steel
Color of the tanker According your demands
Transport medium Diesel oil, gasoline or others
Fittings PTO oil pump
An aluminum alloy European standard manhole
Fuel hose box fitted on both side of tank
An aluminum alloy sea valves
Two Fire extinguisher
One spare tire
Ladder: For access to top of tank complete with cat walk on top of tank
Heavy-duty rear bumper


Applications:

Fuel tanker truck is a gasoline transport truck designed for efficient fuel delivery. This truck is equipped with a manual transmission and a toolbox, so it can handle tough terrain and heavy loads. It also features a digital meter to measure the amount of fuel delivered and a stainless steel body for ultimate durability. Additionally, it is equipped with air brakes for improved safety. This is an ideal choice for fuel delivery applications that require reliable manual transmission, a toolbox, digital meter, stainless steel body, and air brakes.

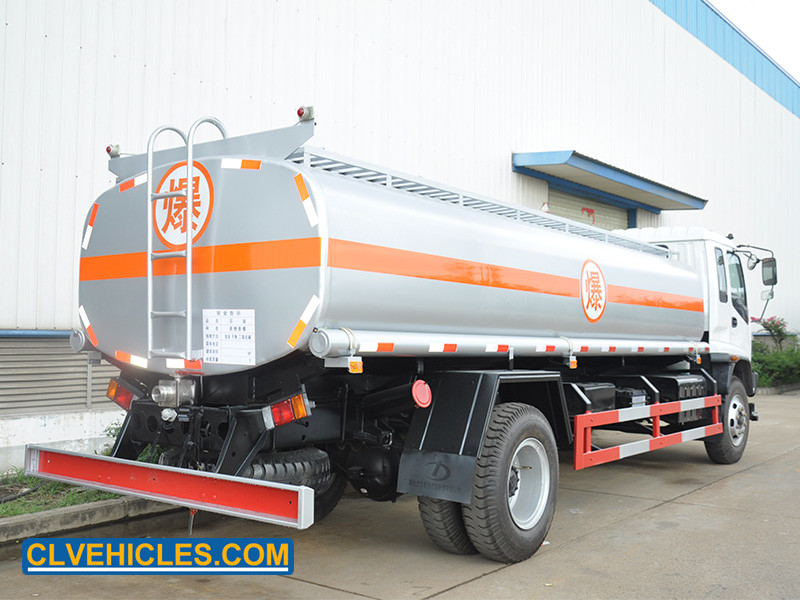

 20 CBM ISUZU Fuel Tanker Truck Stainless Steel Petroleum Tanker Truck 3

Customization:

Customize Your Fuel Tanker Truck

Are you looking for an Oil Tanker Truck, Gasoline Transport Truck, or Fuel Delivery Truck? Get the perfect vehicle for your needs with our customizable Fuel Tanker Truck.

 20 CBM ISUZU Fuel Tanker Truck Stainless Steel Petroleum Tanker Truck 4

Support and Services:

Fuel Tanker Truck Technical Support and Service

We provide technical support and service for our Fuel Tanker Truck product. Our experienced technicians are available to assist you with any technical issues or questions you may have. We provide both online and telephone support, and are happy to answer any questions you may have about our Fuel Tanker Truck.



1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.

2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.

3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.

4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.



Packing and Shipping:

For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.

20 CBM ISUZU Fuel Tanker Truck Stainless Steel Petroleum Tanker Truck 5



FAQ:

  • Q: What is a Fuel Tanker Truck?
    A: A Fuel Tanker Truck is a heavy-duty vehicle specifically designed to transport large quantities of fuel over long distances.
  • Q: What is the capacity of a Fuel Tanker Truck?
    A: The capacity of a Fuel Tanker Truck can vary from 5,000 gallons to 11,000 gallons.
  • Q: What materials are used to build a Fuel Tanker Truck?
    A: Fuel Tanker Trucks are usually constructed with high-grade steel and aluminum for maximum durability.
  • Q: What safety features are included in a Fuel Tanker Truck?
    A: Fuel Tanker Trucks are equipped with a variety of safety features such as anti-lock brakes, air brakes, rollover protection, fire extinguishers, and more.
  • Q: How often should a Fuel Tanker Truck be serviced?
    A: It is recommended that Fuel Tanker Trucks be serviced every 6 months or according to the manufacturer's recommended intervals.
