600P ISUZU Fuel Tanker Truck 130hp 5000 Liters Gasoline Tank Truck

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xEngine | Diesel | Safety Features | Anti-lock Brakes, Rollover Protection System |
---|---|---|---|
Meter | Digital | Transmission | Manual |
Color | White/Blue/Red | Compartments | 1-3 |
Drive Type | 4x2 | Emission Standard | Euro V |
Material | Carbon Steel/Stainless Steel | Product Name | ISUZU Fuel Tanker Truck |
Tank Volume | 5000L | Thickness | 5mm/6mm |
Wheelbase | 3360mm | ||
High Light | ISUZU Fuel Tanker Truck Gasoline,ISUZU Fuel Tanker Truck 130hp,5000 Liters Gasoline Tank Truck |

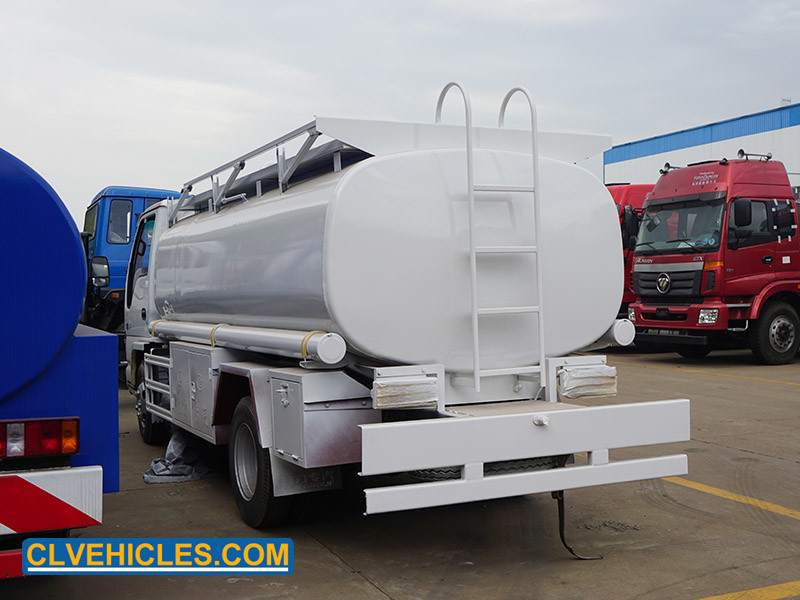

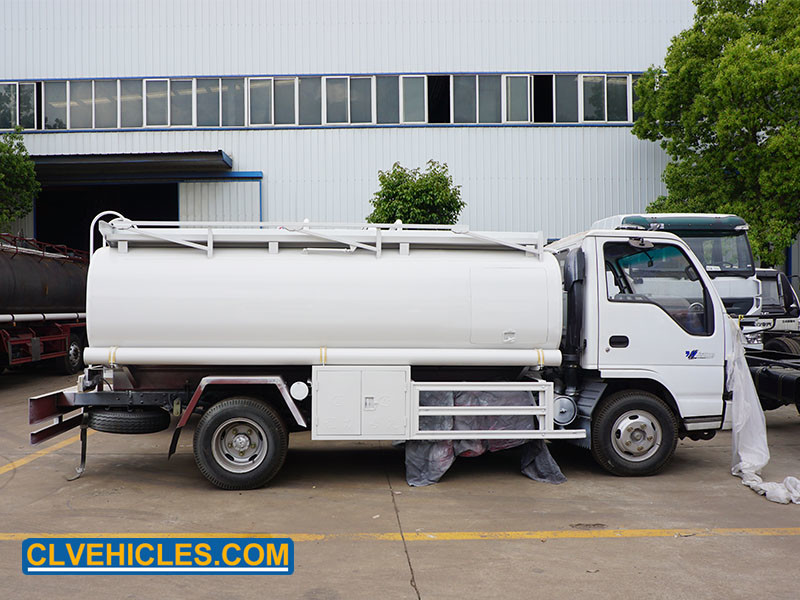

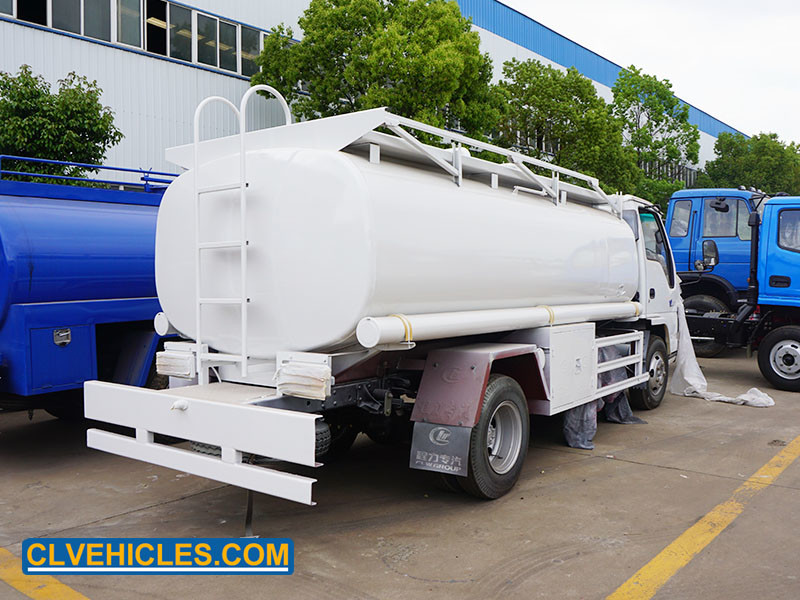

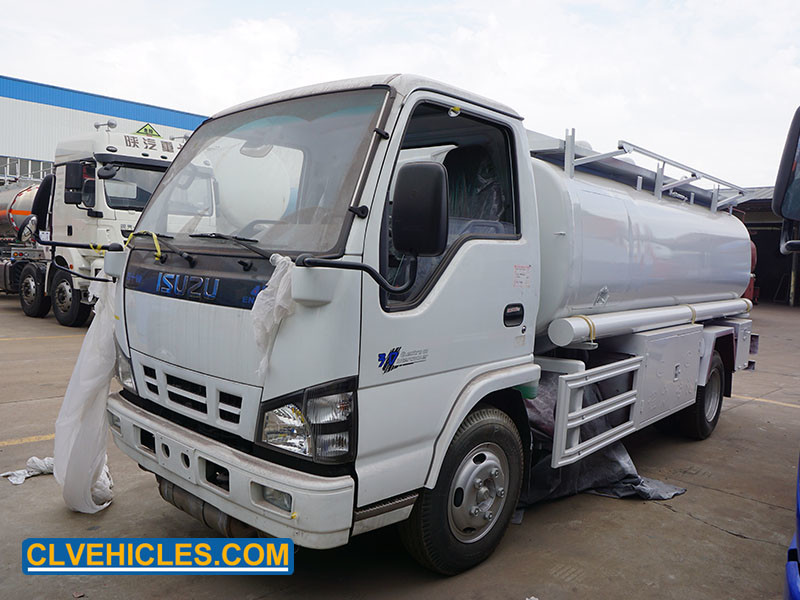

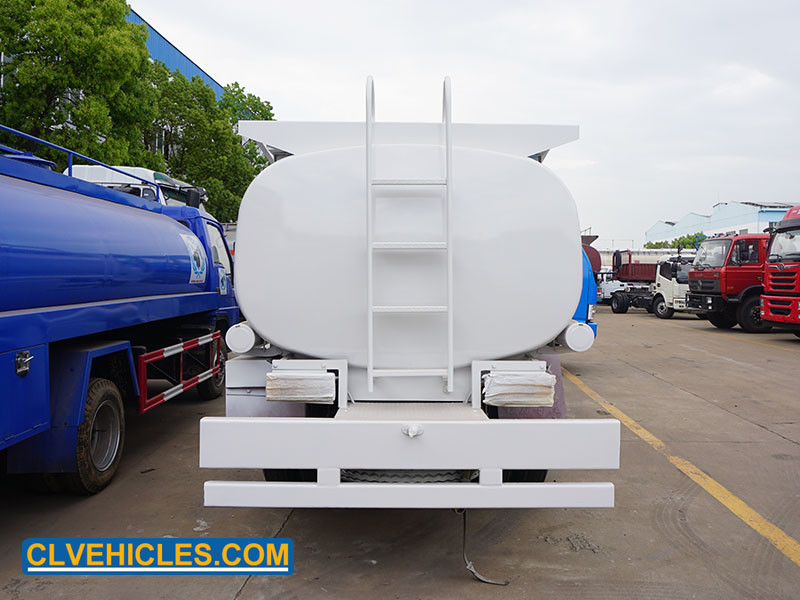

ISUZU 600P 130hp 5000 Liters Gasoline Tanker Truck with Hose Reel Radial Tires
Overview:
The Fuel Tanker Truck is the perfect solution for oil, gasoline, and petroleum delivery. This truck is equipped with two axles, a diesel engine, and a stainless steel tank for maximum durability. It also comes with a hose reel and a convenient toolbox to help make deliveries as easy and efficient as possible. This truck is designed for safe and secure delivery of all types of fuels, making it the ideal choice for those in the oil and petroleum industries.



Features:

Technical Parameters:
Chassis Specification | |||

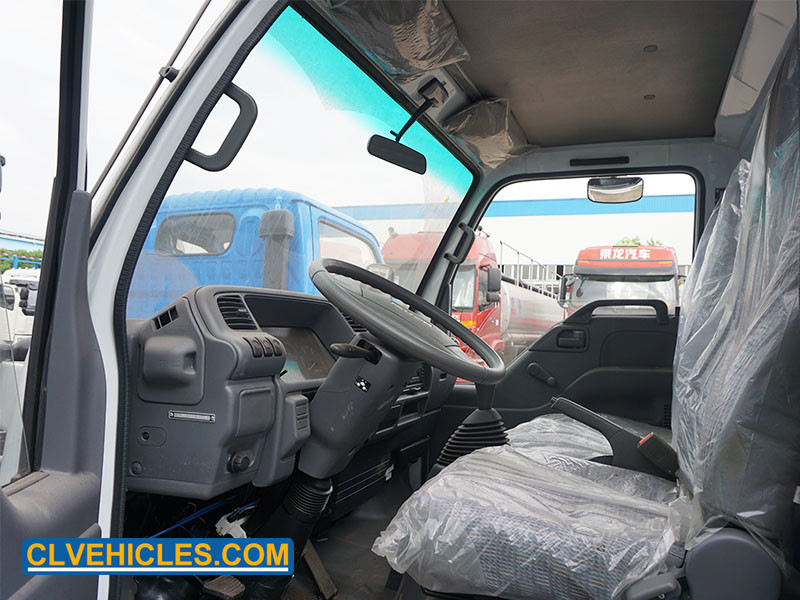

Cab | Single row cab, with power steering. Electronic flameout | ||
Driving Type | 4*2 Left hand driving | ||
Max Speed (km/h) | 110 | ||
Overall dimension (mm) | 6995*1960*2650 | ||
GVW (kg) | 7000 | ||
Mass in working order (kg) | 3450 | ||
Wheelbase (mm) | 3815 | ||
Tire | 7.00R16 | ||
Clutch | Single-plate dry diaphragm spring clutch | ||
Steering | Hydraulic steering with power assistance | ||
Gear box | 5-speed | ||
Axle | Front axle | 2.5T | |
Rear axle | 4.8T | ||
Engine | Model | 4KH1CN5HD | |
Fuel Type | Diesel fuel | ||
Type | Water-cooled, four-stroke, direct injection, turbocharged | ||
Exhaust (ml) | 2999 | ||
Max output power/rotate speed (hp /rpm) | 130/2900 | ||
Max torque/rotate speed (N.m /rpm) | 290/1500 | ||
Braking system | Service Brake | Oil brake | |
Park Brake | Spring energy | ||
Superstructure Specification | |||
Fuel tank | |||
Design Volume | 5000L | ||
Tank shape | Ellipsoid | ||
Material of tank | High Quality Q235 Carbon steel | ||
Thickness of tank | 4mm | ||
Transport medium | Diesel, gasoline | ||
Safety accessories | |||
Manhole cover | European standard cover | ||
Anti-overflow probe | |||
Gas recovery joint | |||
Bottom Filling Device | API discharge valve | ||
Pumping outlet & inlet | |||
Oil and gas recovery valve | |||
Anti-overflow anti-static socket | |||
Percolator | |||
Bottom of tank valve | Emergency valve | ||
Refueling machine | Portable machine with refueling reel & gun | ||
Length of refueling reel | 15m |
Applications:
Fuel tanker truck is a gasoline transport truck designed for efficient fuel delivery. This truck is equipped with a manual transmission and a toolbox, so it can handle tough terrain and heavy loads. It also features a digital meter to measure the amount of fuel delivered and a stainless steel body for ultimate durability. Additionally, it is equipped with air brakes for improved safety. This is an ideal choice for fuel delivery applications that require reliable manual transmission, a toolbox, digital meter, stainless steel body, and air brakes.

Customization:
Are you looking for an Oil Tanker Truck, Gasoline Transport Truck, or Fuel Delivery Truck? Get the perfect vehicle for your needs with our customizable Fuel Tanker Truck.

Support and Services:
We provide technical support and service for our Fuel Tanker Truck product. Our experienced technicians are available to assist you with any technical issues or questions you may have. We provide both online and telephone support, and are happy to answer any questions you may have about our Fuel Tanker Truck.
1. Warranty
The customers can enjoy a maximum warranty period of 12 months or 10000 kilometers, whichever comes first, from shipment date on Bill of Lading.
2. Technical Support
For our supplied products, you can forever enjoy technical support whatever by phone call or email. We will respond aggressively to provide a prompt solution.
3. Onsite Training
On-site training could be executed if this term is included in the contracts agreed.
4. Onsite Service
We can assign our engineers to go to destination for on-site service if this term is included in the contracts agreed. Even service workshop could be built if the order comes to certain quantity.
Packing and Shipping:
For far away countries, We always use sea transport. According to vehicle dimension, we may use container vessel, or bulk vessel (the vehicle is lifted onto vessel by cranes), or RORO vessel (Roll on roll off vessel, the vehicle is driven on at loading port and driven off at discharge port, it is best way for a vehicle with engine. Semi-trailer without engine, can be loaded with a tractor from the port.) Usually it takes about 6 weeks to West Africa or South America. Shorter time to nearer countries.
FAQ:
- Q: What is a Fuel Tanker Truck?
A: A Fuel Tanker Truck is a heavy-duty vehicle specifically designed to transport large quantities of fuel over long distances. - Q: What is the capacity of a Fuel Tanker Truck?
A: The capacity of a Fuel Tanker Truck can vary from 5,000 gallons to 11,000 gallons. - Q: What materials are used to build a Fuel Tanker Truck?
A: Fuel Tanker Trucks are usually constructed with high-grade steel and aluminum for maximum durability. - Q: What safety features are included in a Fuel Tanker Truck?
A: Fuel Tanker Trucks are equipped with a variety of safety features such as anti-lock brakes, air brakes, rollover protection, fire extinguishers, and more. - Q: How often should a Fuel Tanker Truck be serviced?
A: It is recommended that Fuel Tanker Trucks be serviced every 6 months or according to the manufacturer's recommended intervals.
